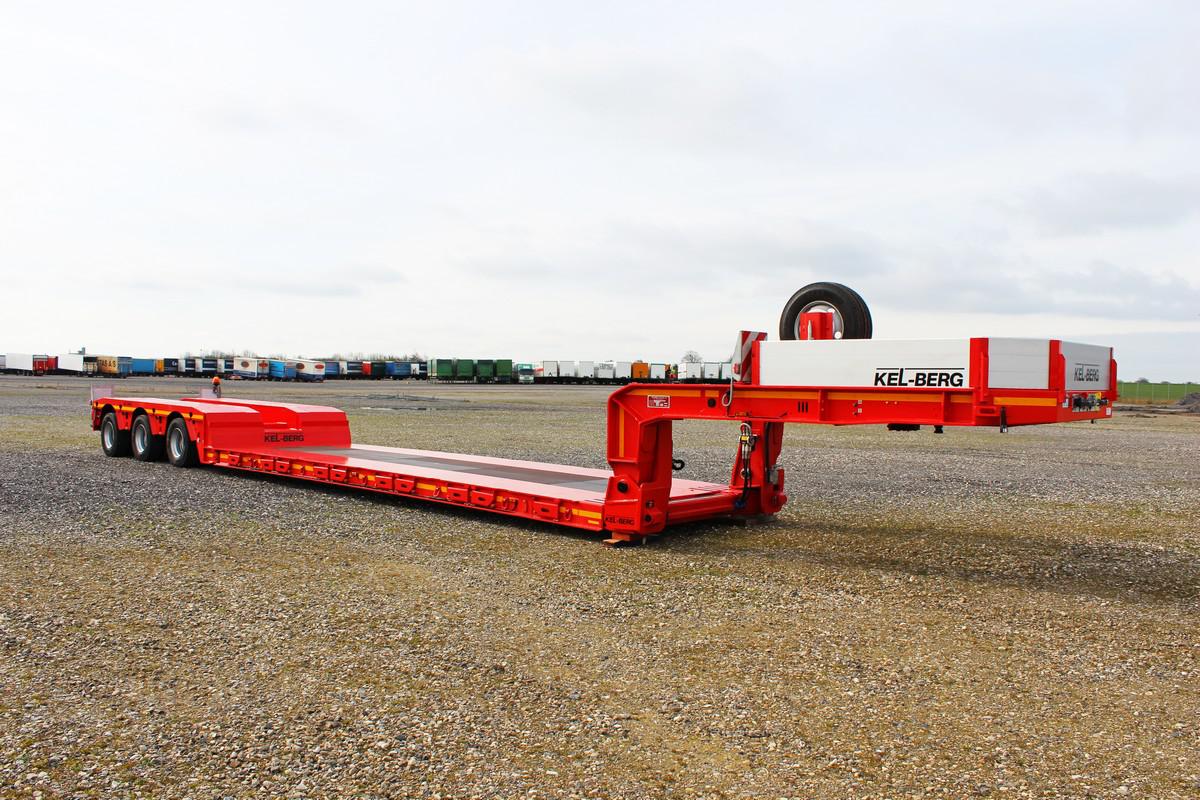

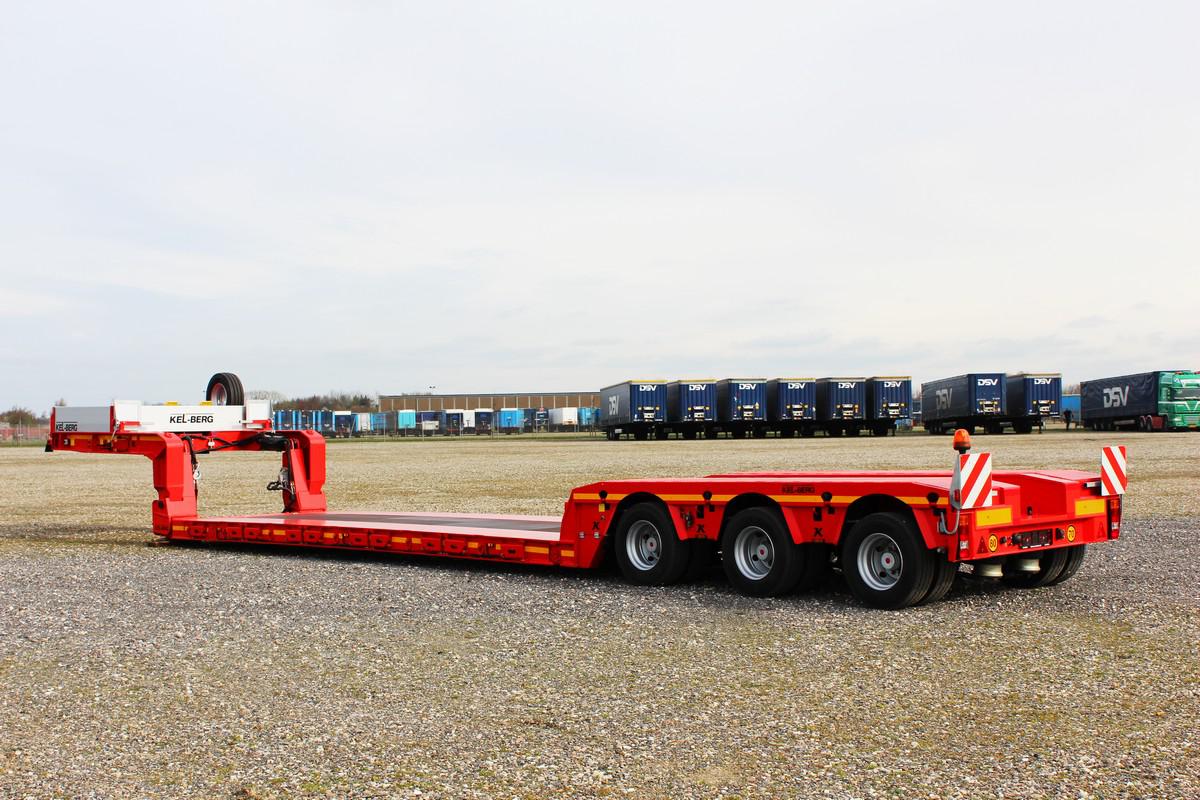

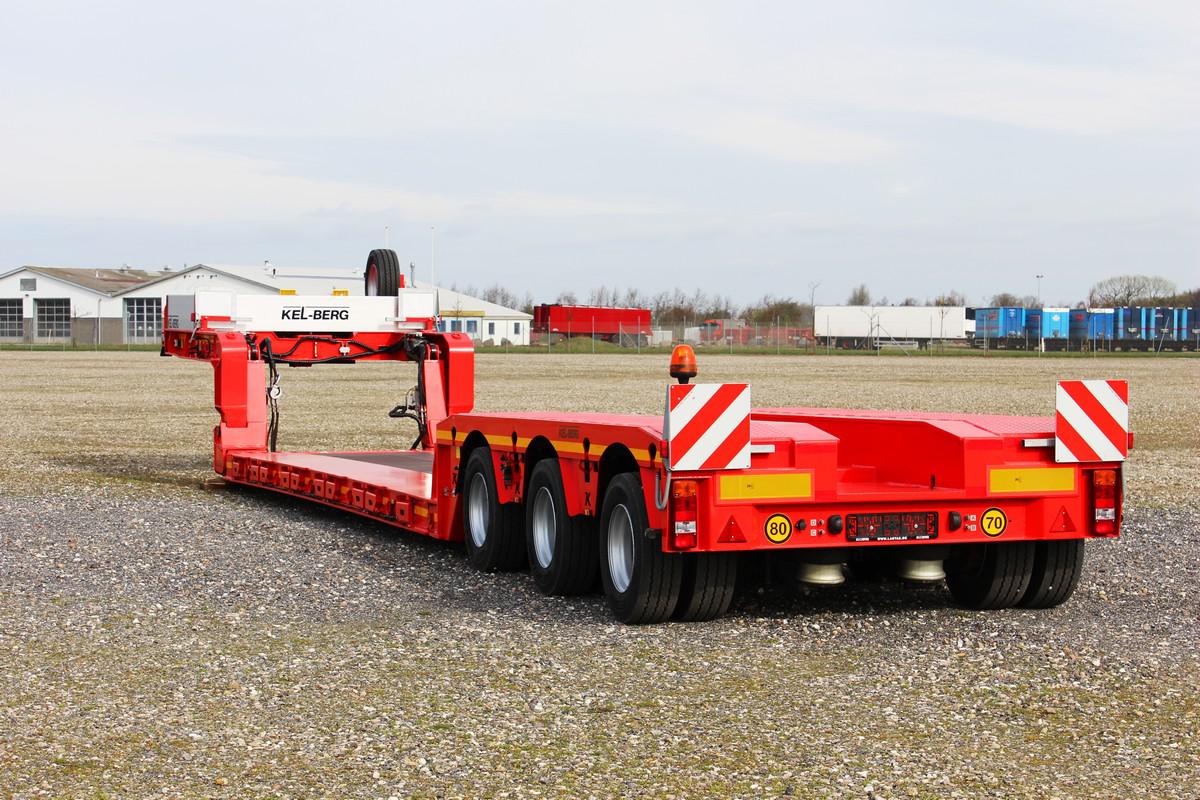

S903KT KEL-BERG 3-AXLE LOWBED TRAILER

DIMENSIONS & WEIGHT

The trailer has a permitted total weight of 54,000 kg and a wheelbase of 1,360 mm.

CHASSIS

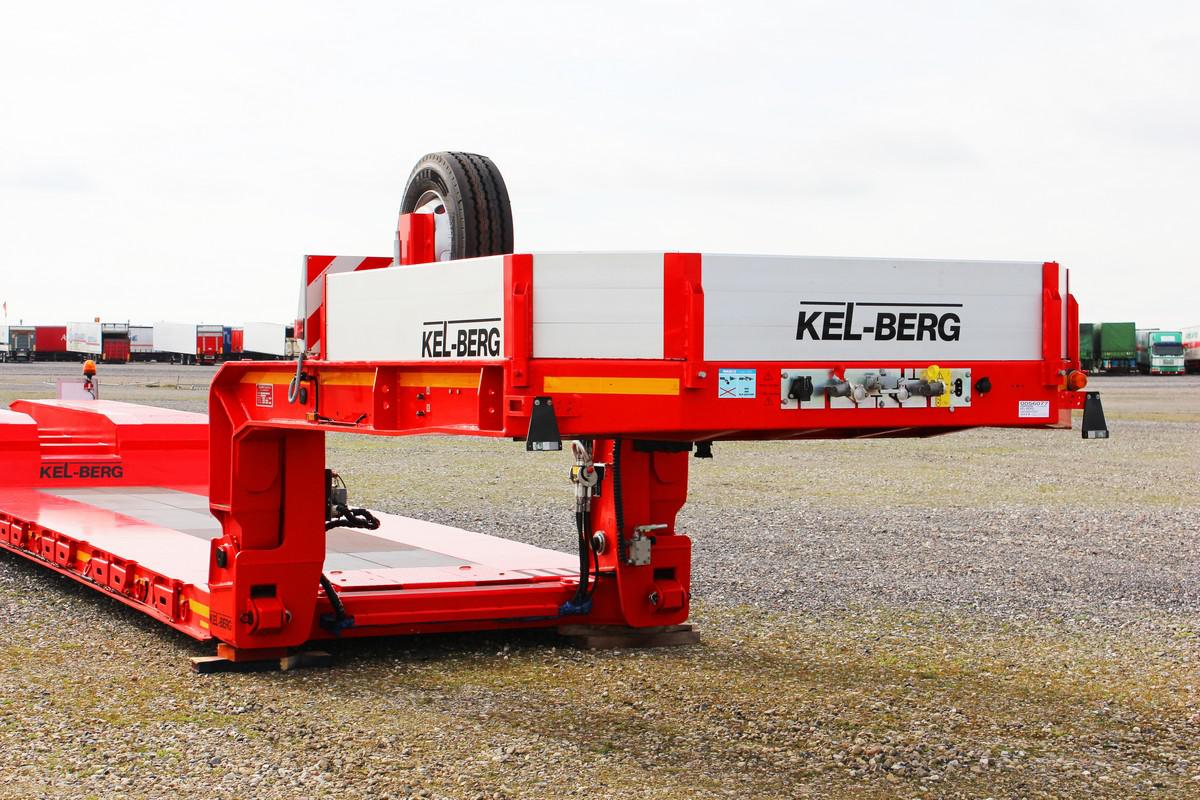

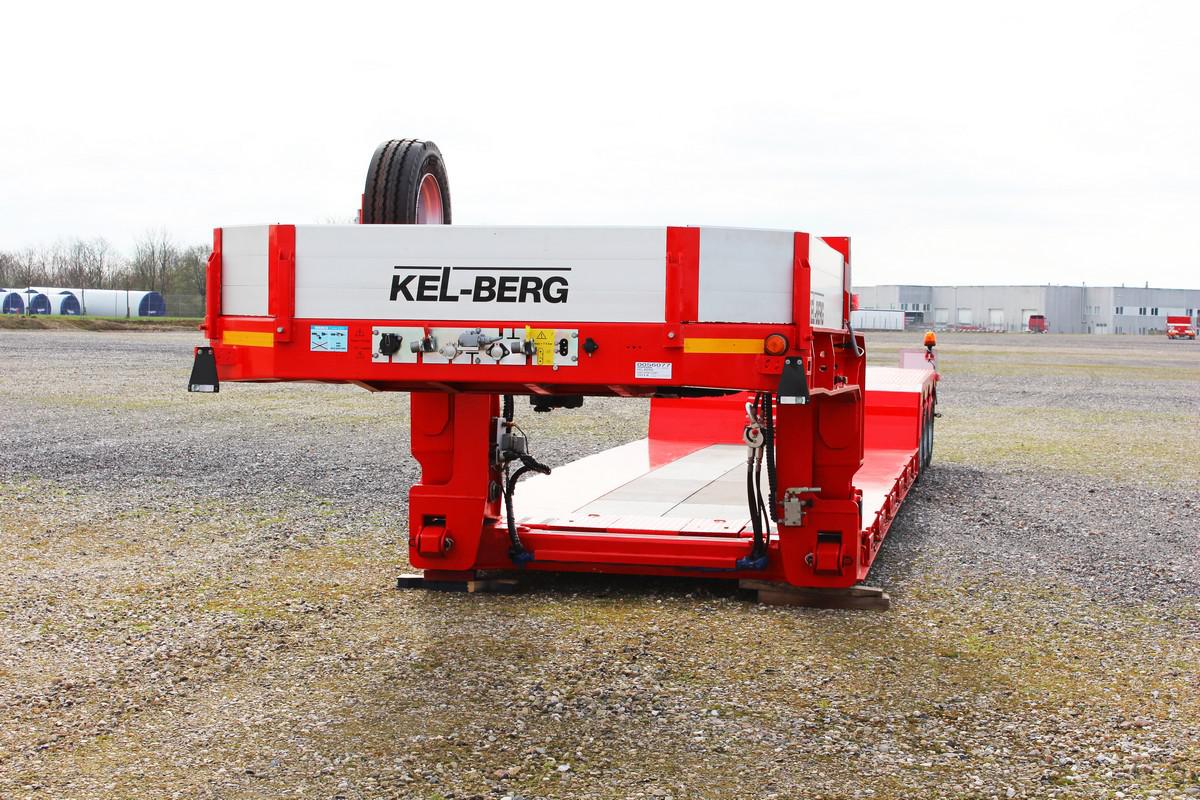

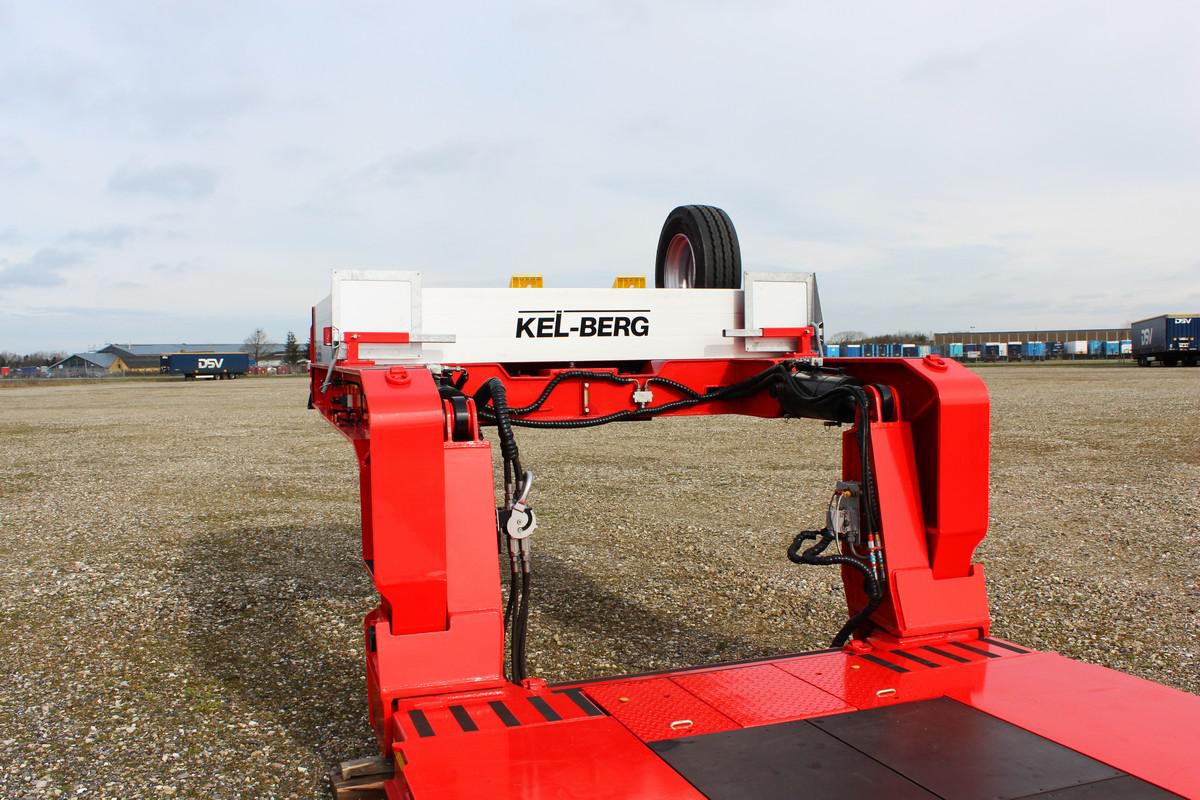

The gooseneck on the trailer has a hydraulic lifting/lowering device. The trailer has a multi-hydraulic coupling between the raising and lowering sections for quick coupling and uncoupling. The load length is approx. 7,800 mm with a 40 mm hardwood base.

AXLES & SUSPENSION

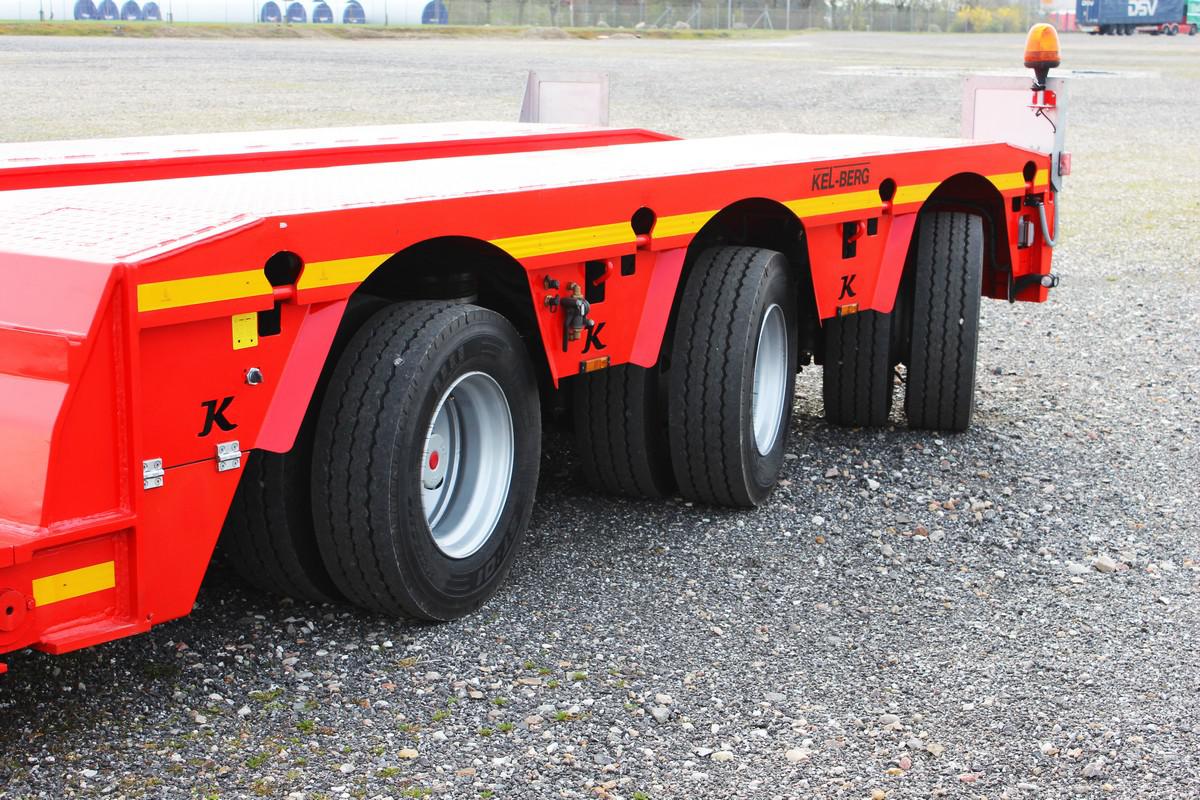

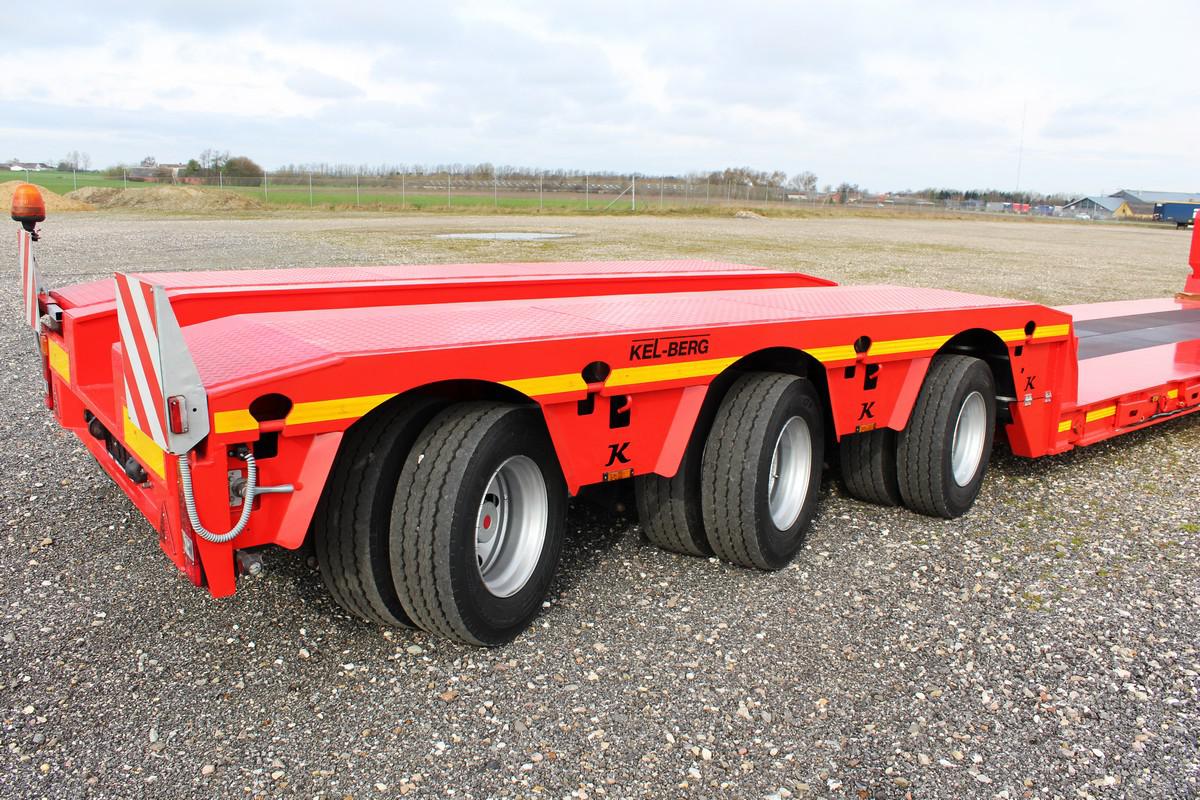

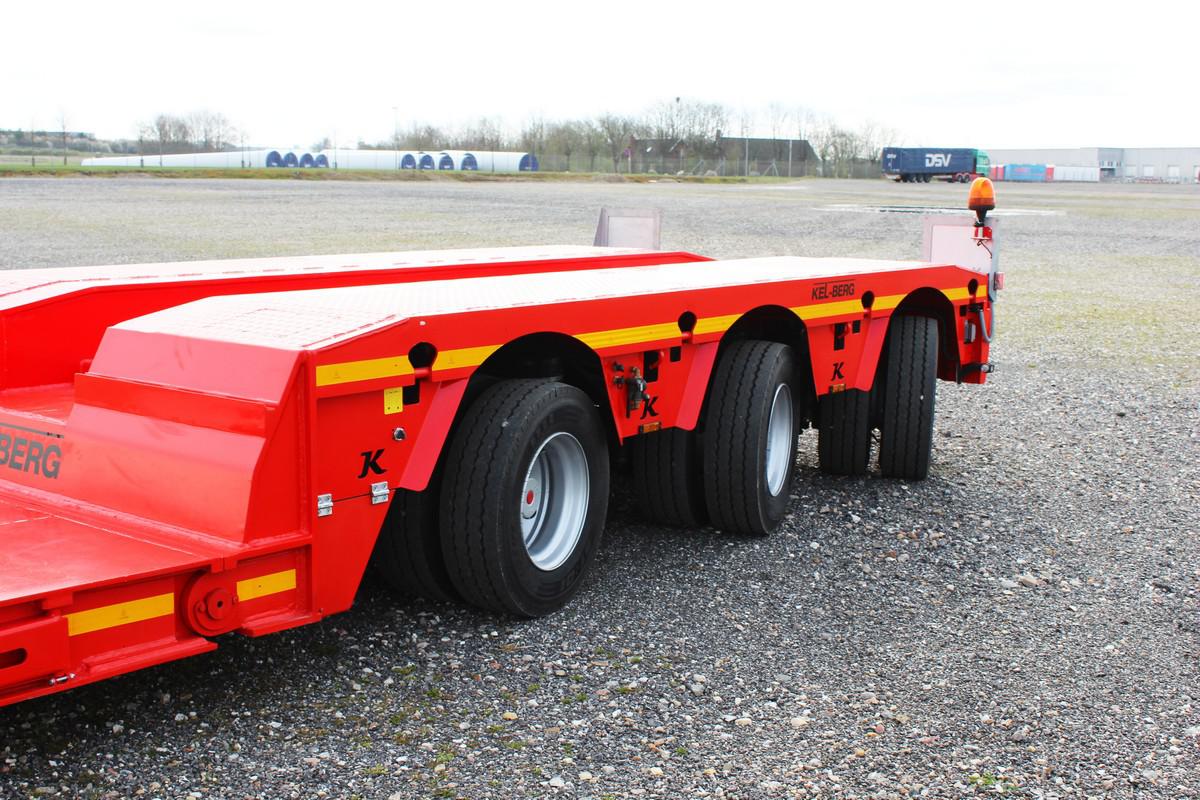

12 tonnes (technical) SAF air axles with lifting/lowering device. All axles are forcibly steered.

BRAKES

The well trailer has the EBS-E braking system manufactured by WABCO.

ELECTRICAL SYSTEM

24 Volt system in accordance with EU regulations.
