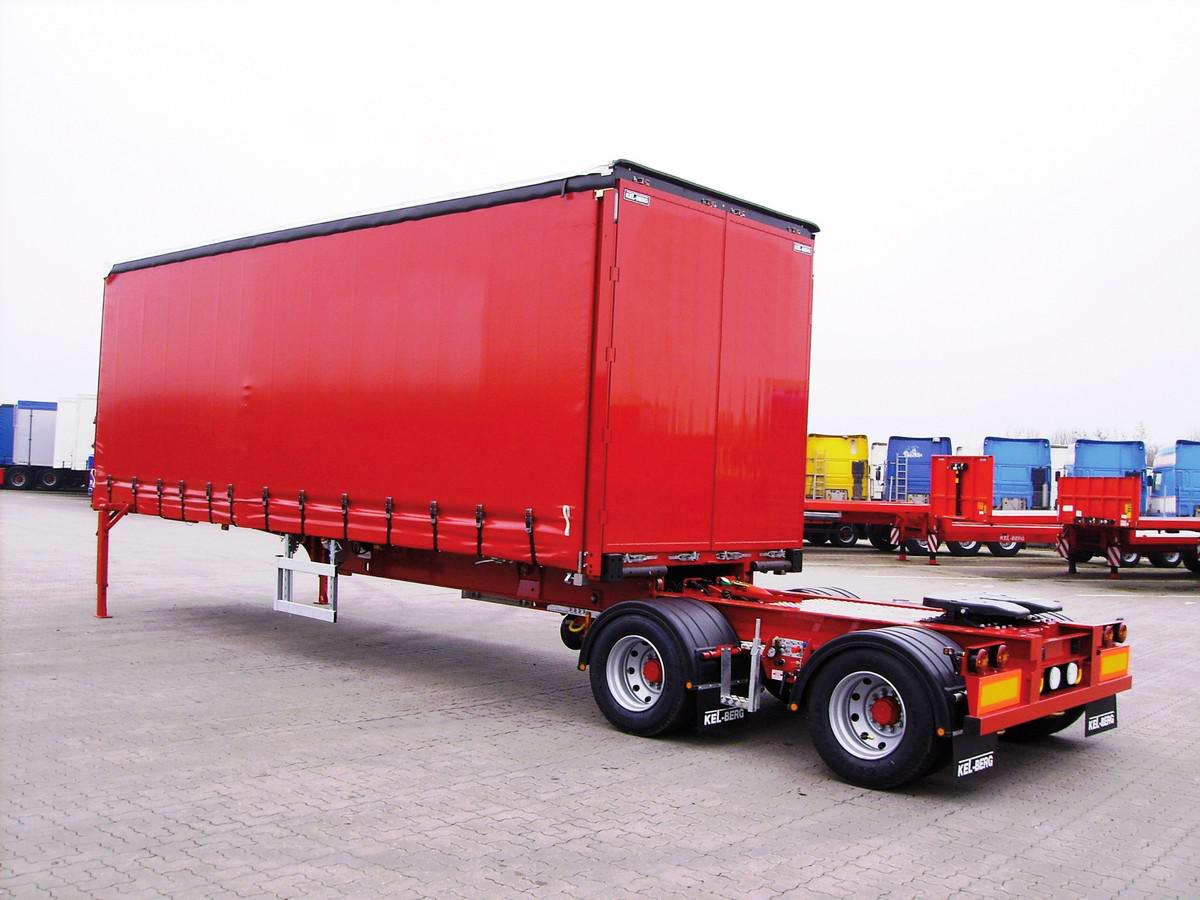

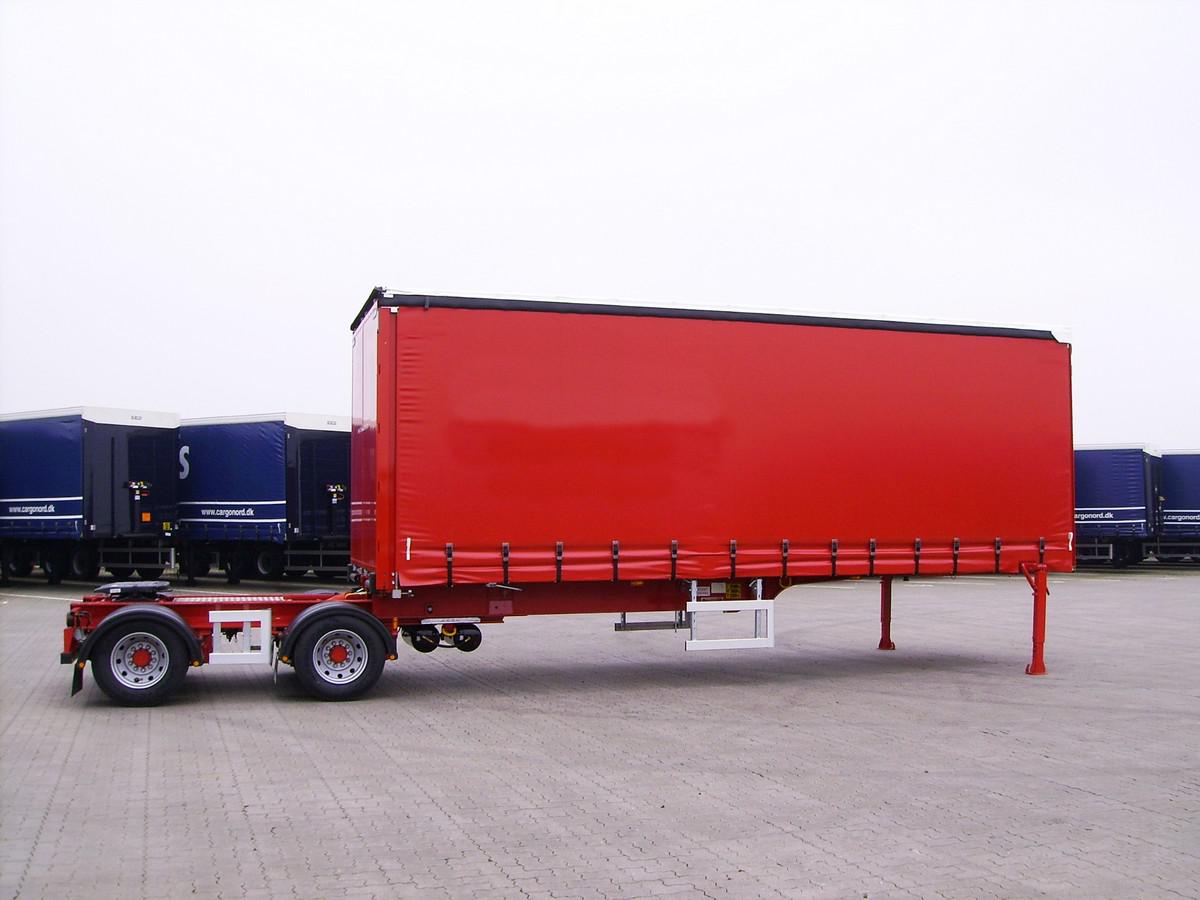

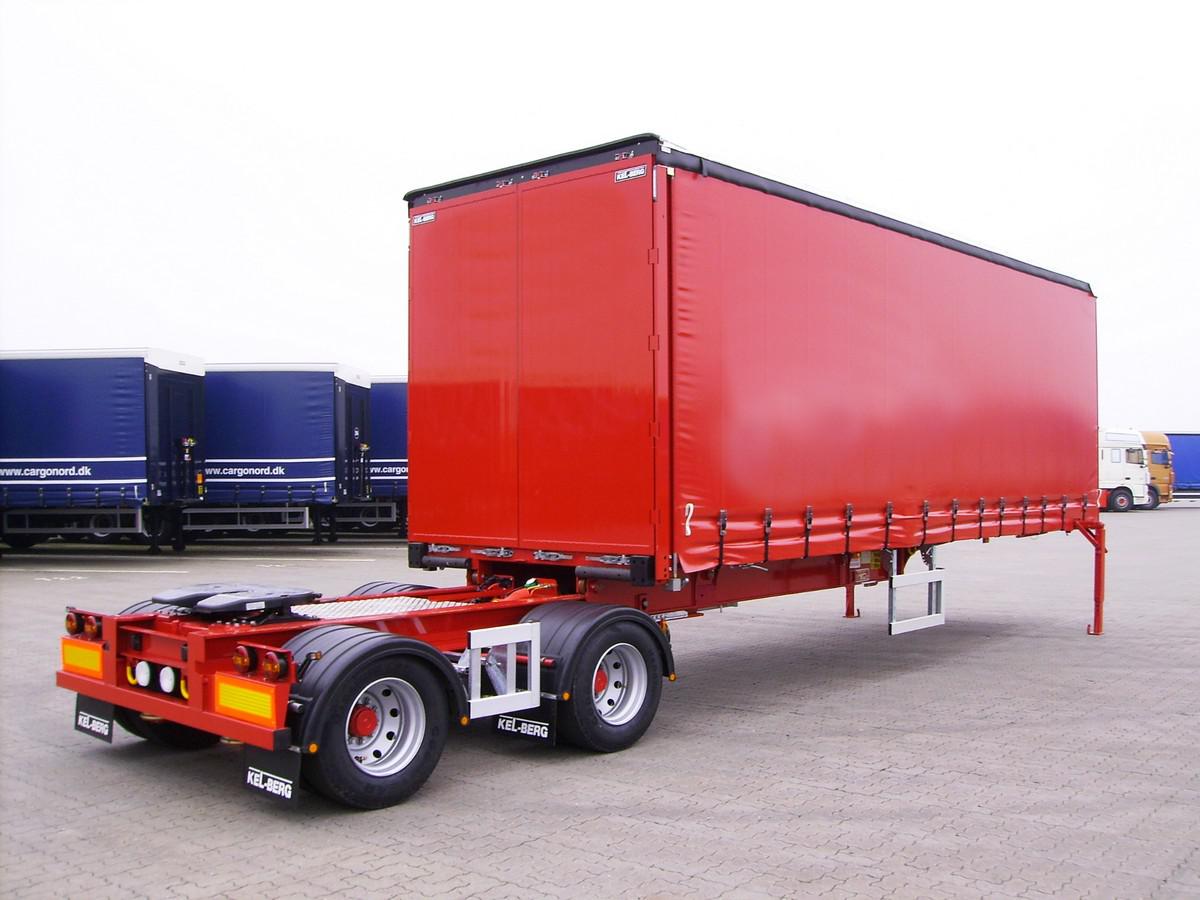

C300D KEL-BERG 2-AXLE CURTAIN LINK TRAILER

DIMENSIONS & WEIGHT

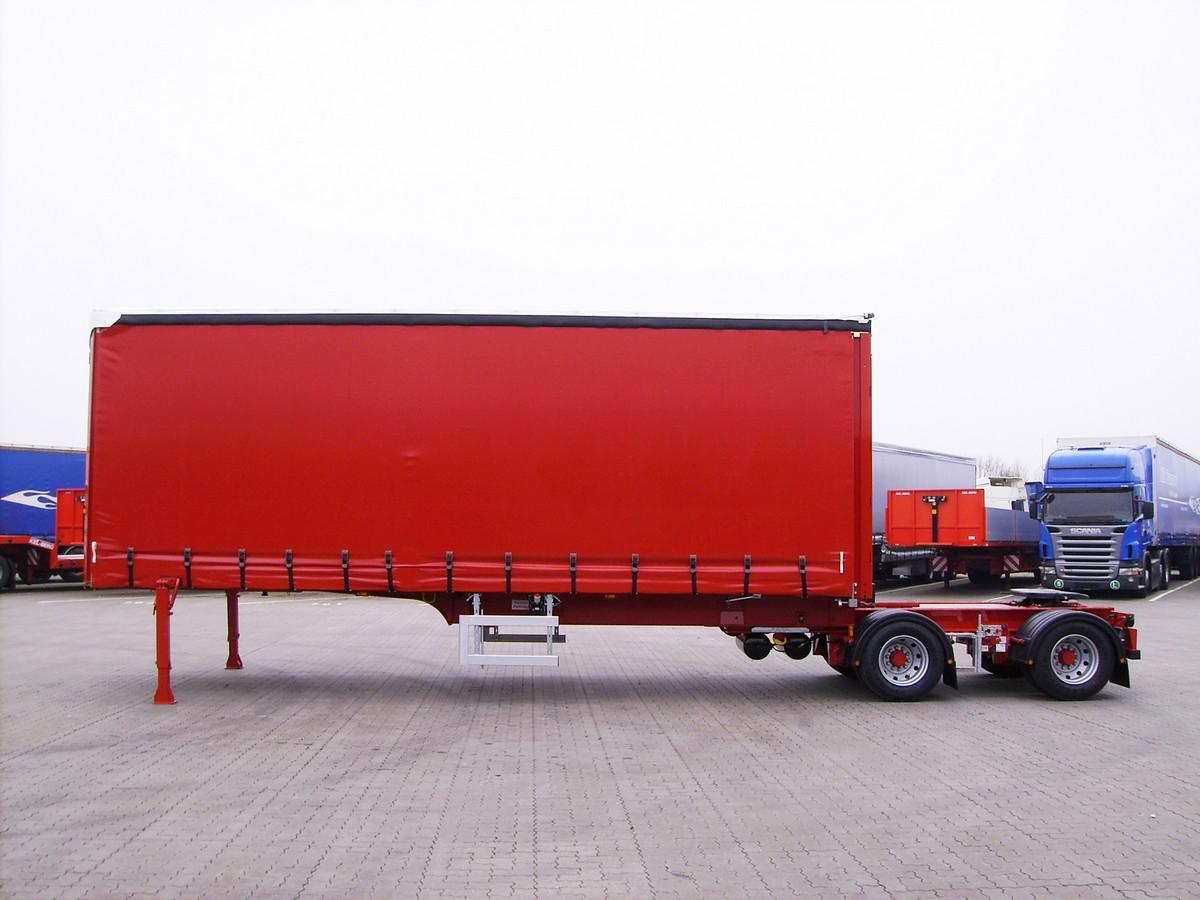

The curtainsider has a permitted total weight of 36,000 kg and an external length of 8,050 mm. The maximum load in the extended version must NOT exceed 20,000 kg

CHASSIS

The curtainsider trailer has a lightweight chassis with heavy-duty cross beams.

AXLES

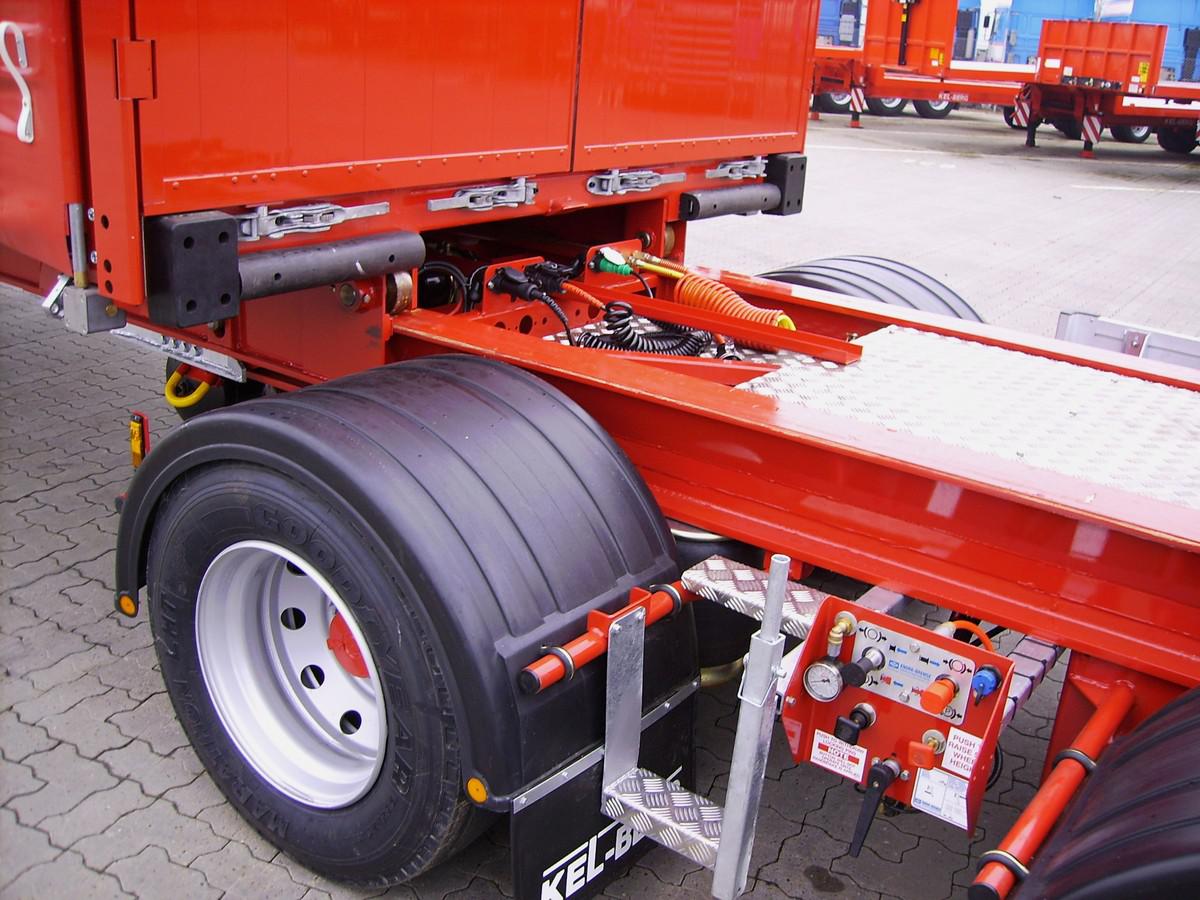

Assembled with 2 pcs. 10 tonne SAF axles with drum brakes and original SAF air suspension.

SUPPORT LEGS

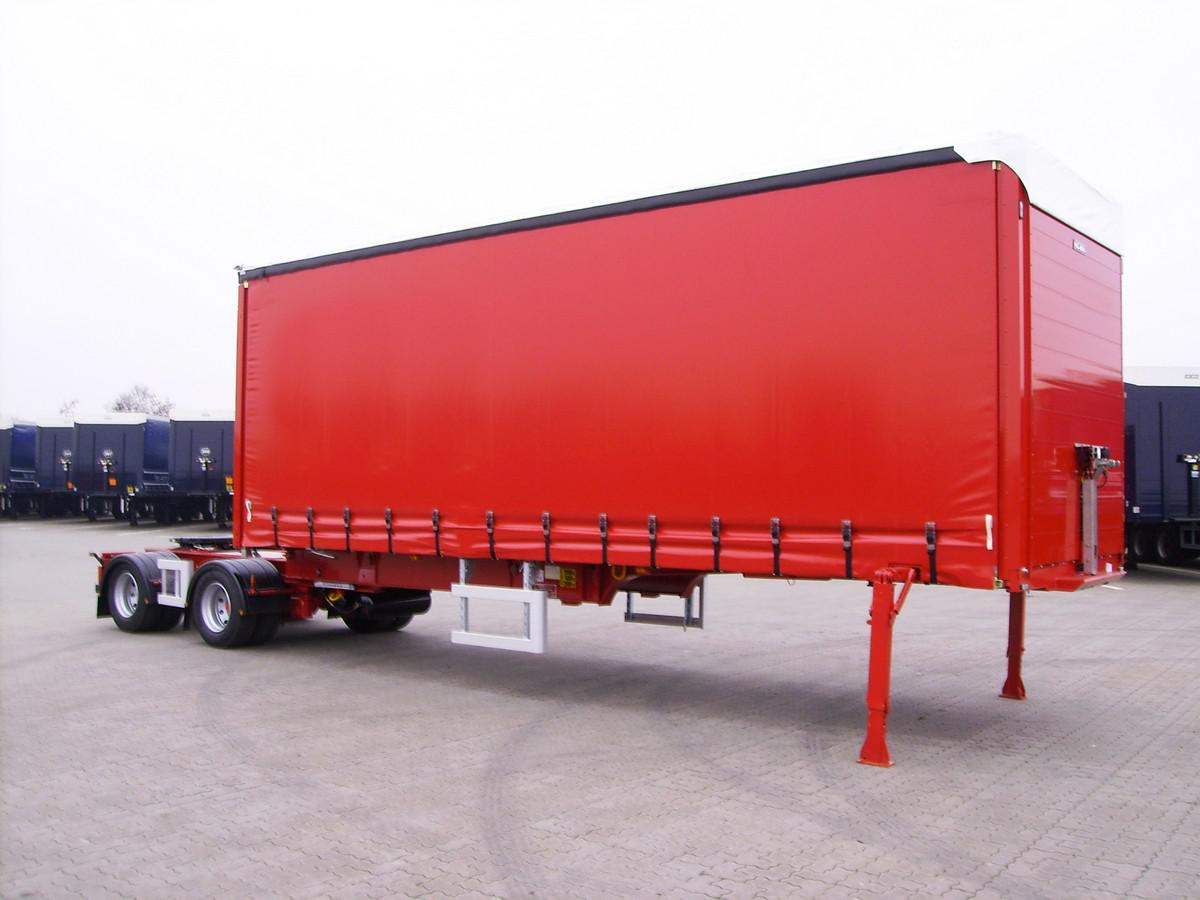

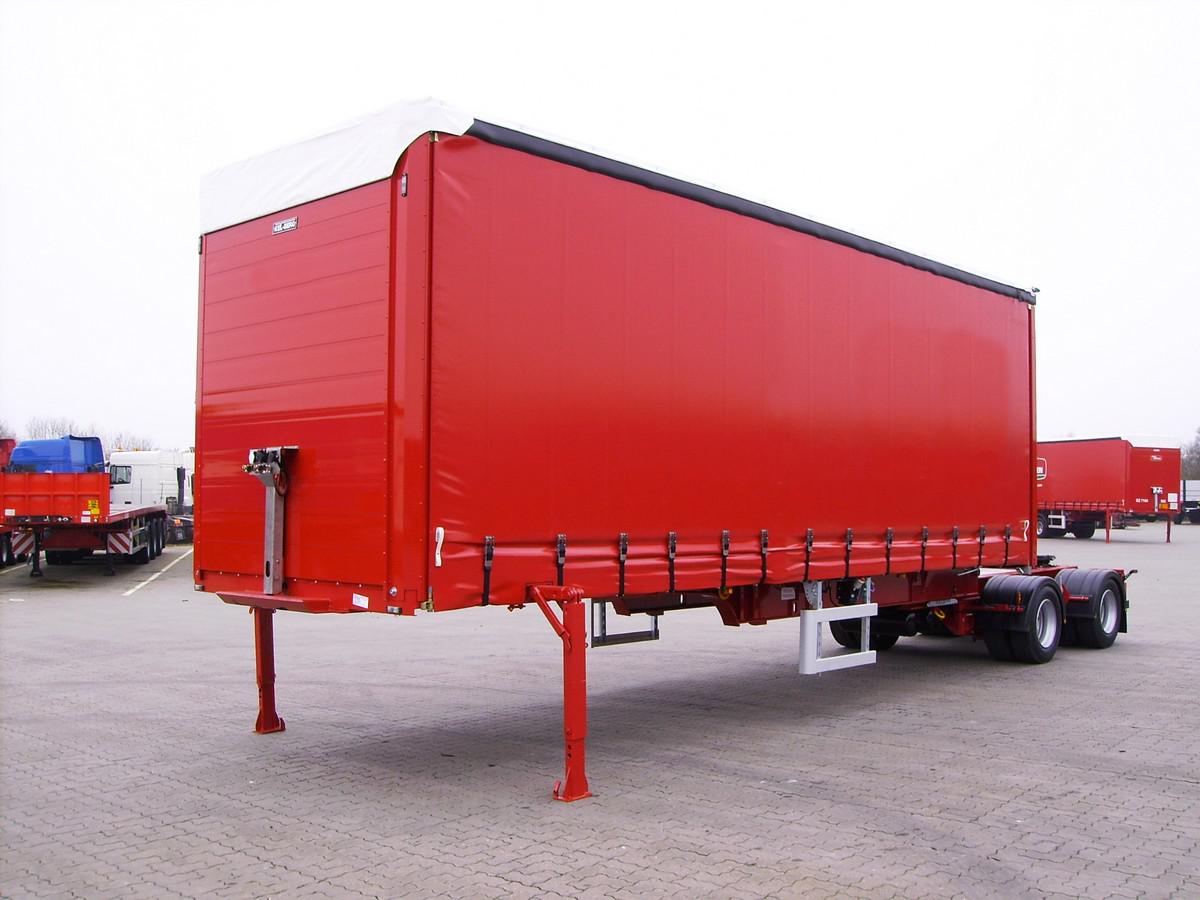

The curtainsider trailer is equipped with 2 JOST container support legs at the front and 2 Eurohitch support legs with 2 gears.

PAINTING

Sandblasted to SA 2.5, which is then painted with 2-component primer and 2-component final paint.

FLOOR

On the inside of the curtainsider trailer there is a floor consisting of 30 mm veneer boards DIN68705. Loads up to 5,000 kg.

ELECTRICAL SYSTEM

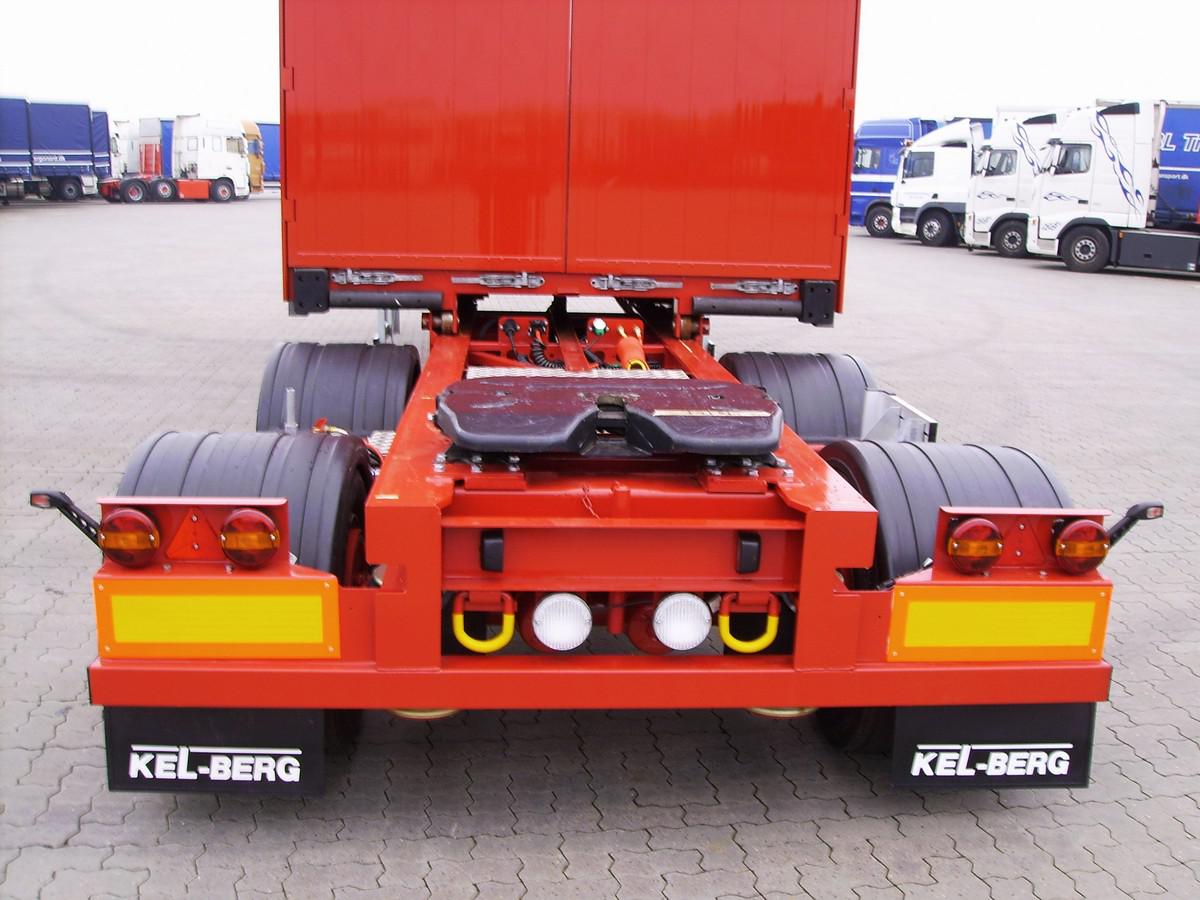

Mandatory front and rear marker lights and mandatory reflectors.

CURTAIN

The curtain trailer has sliding curtain sides of 850 g/m2 quality fabric.
