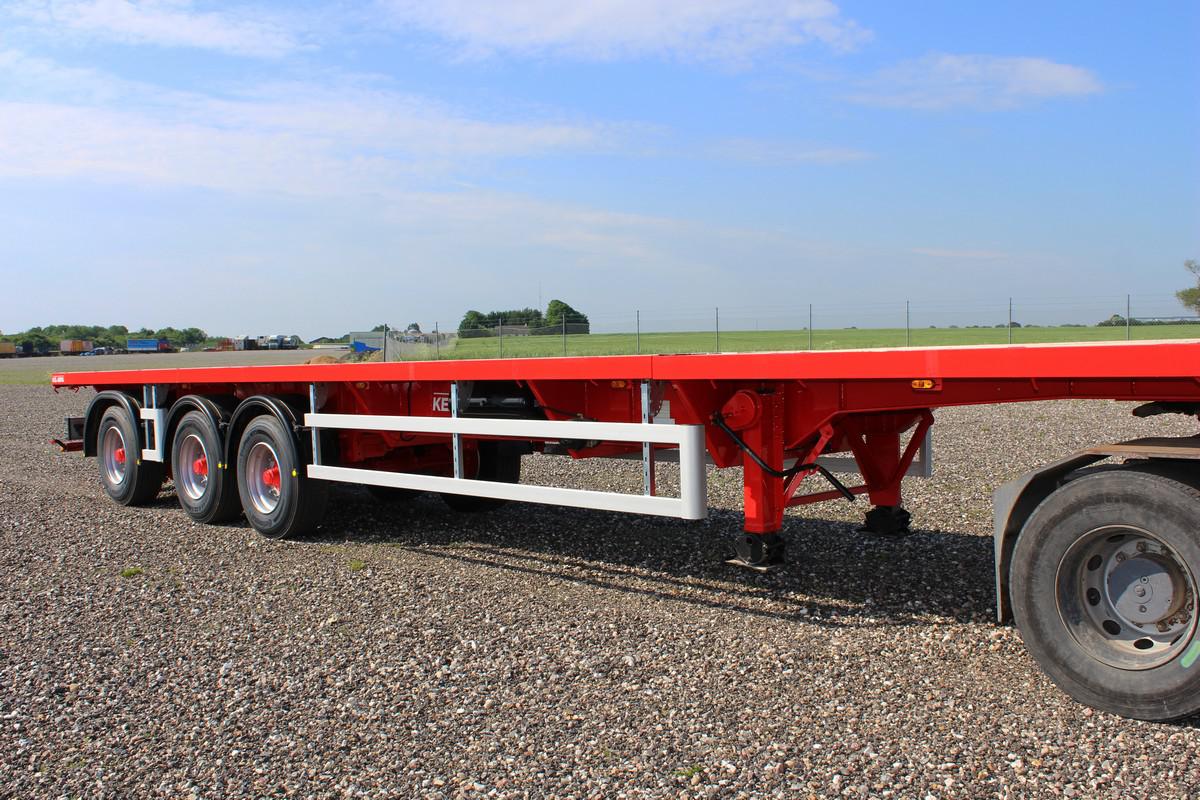

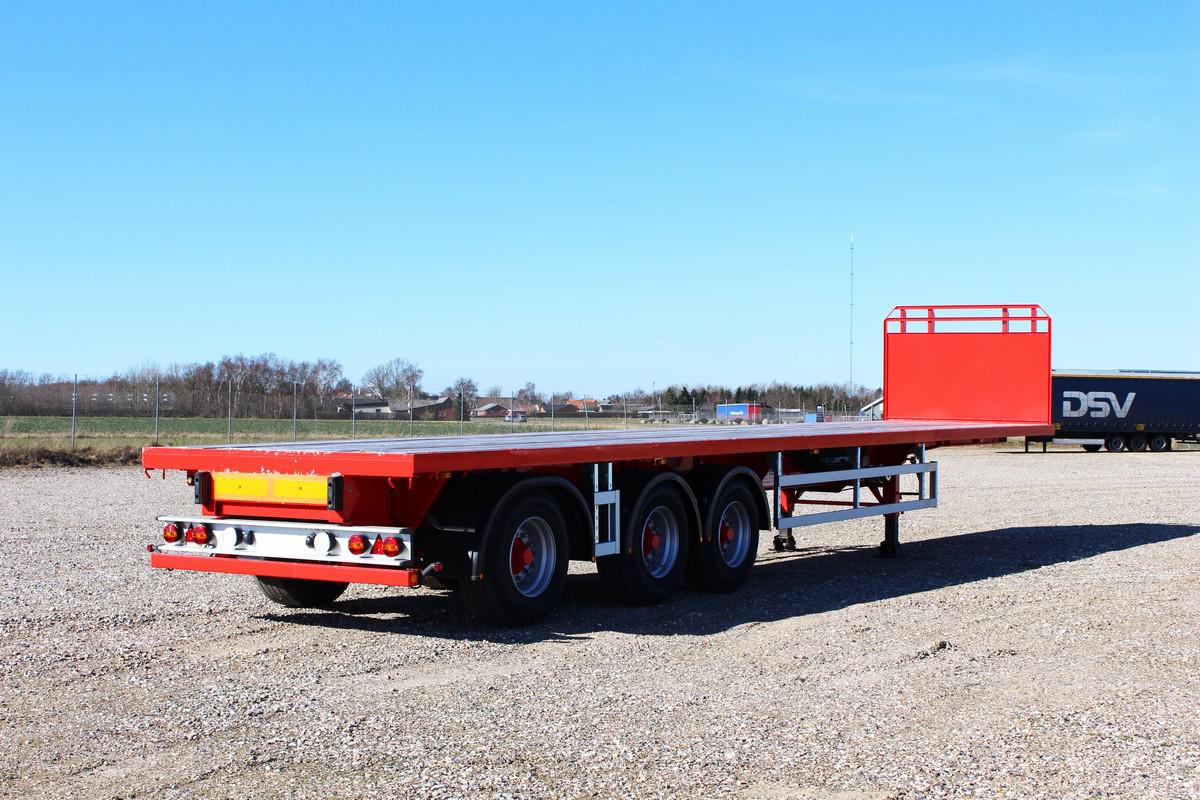

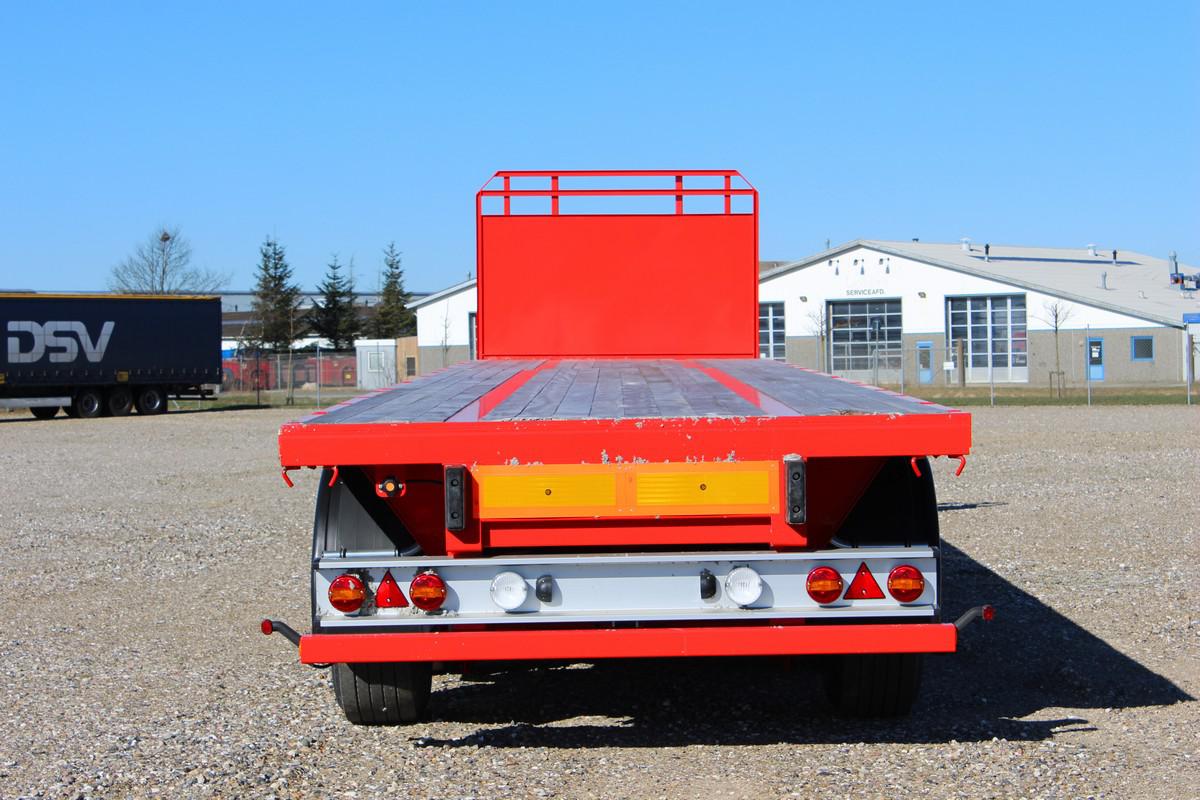

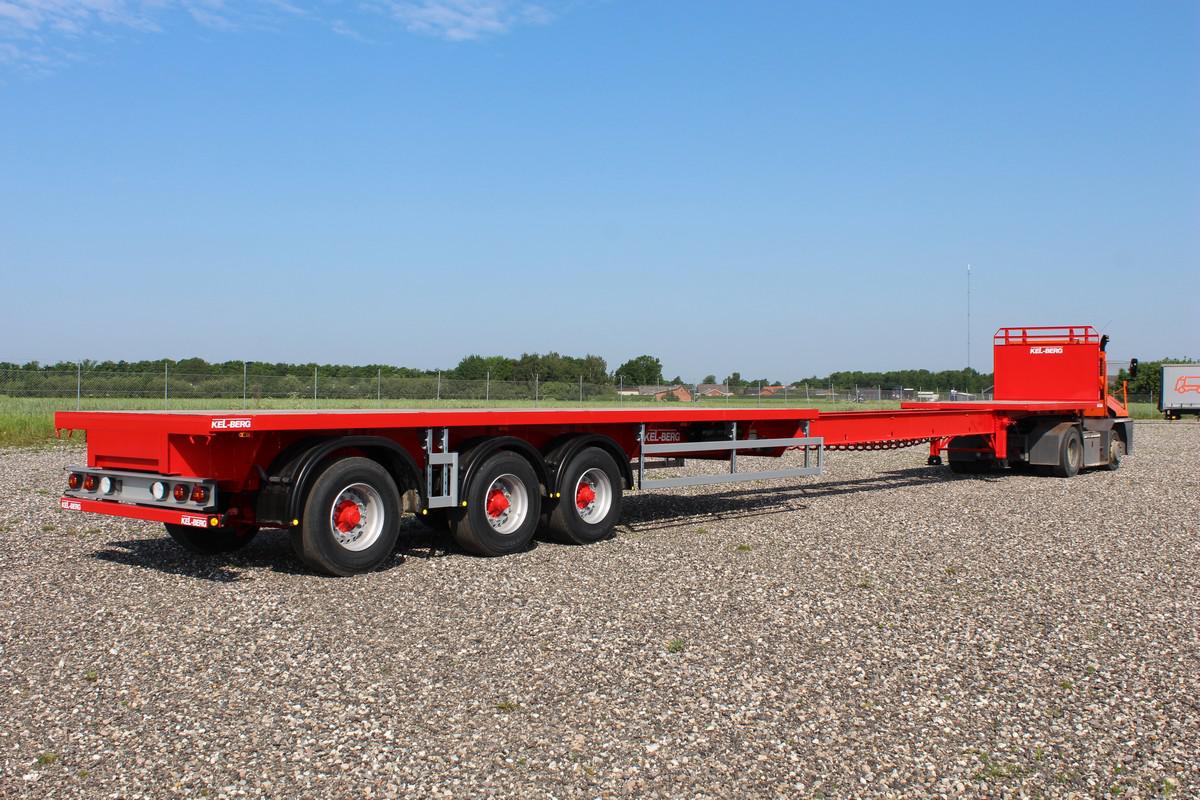

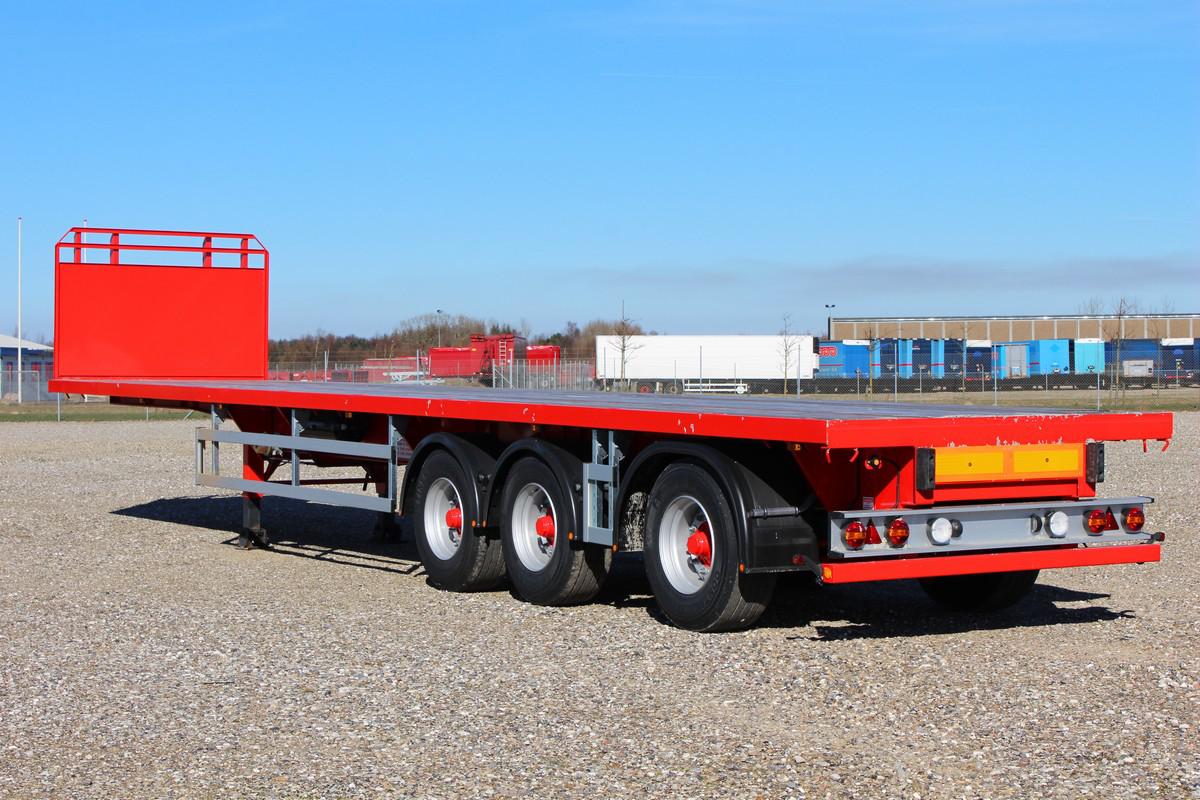

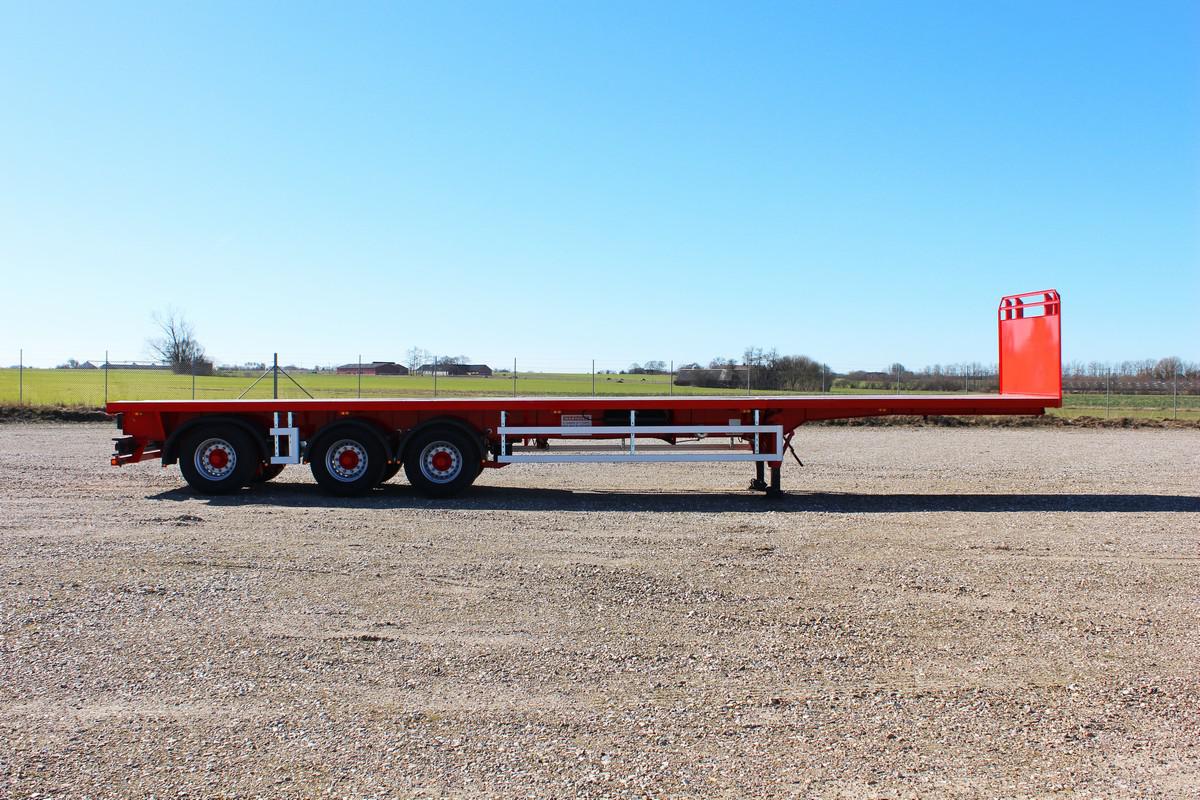

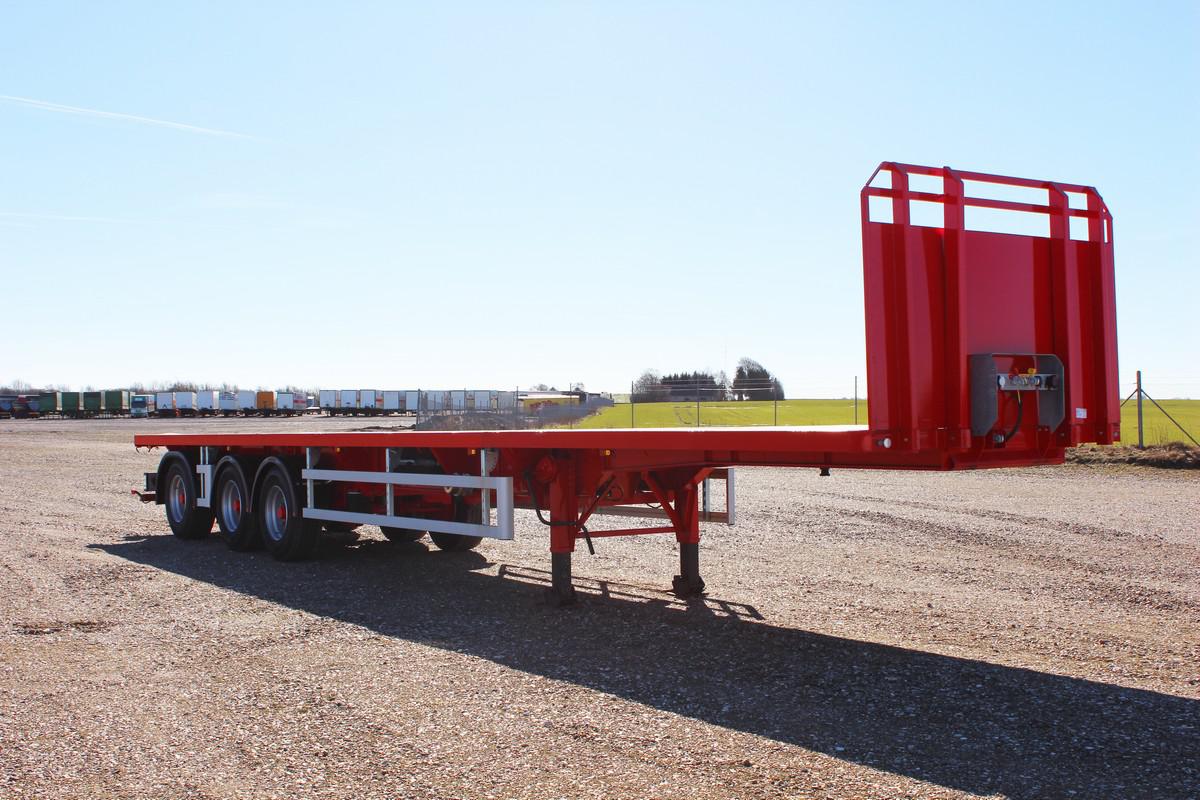

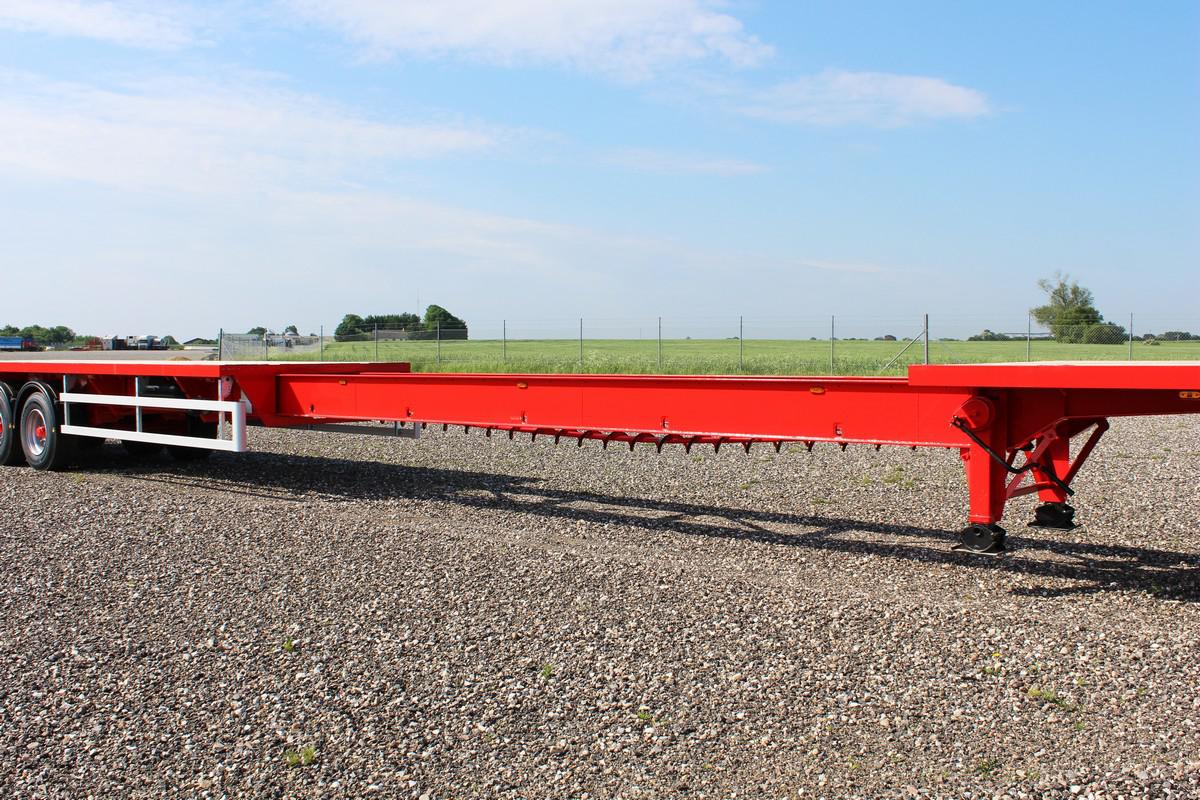

S500D KEL-BERG 3-AXLE HEAVY DUTY EXTENDING FLATBED
WEIGHTS & DIMENSIONS
The heavy-duty drawbar trailer has a gross vehicle weight rating of 40,000 kg and an external chassis length of 13,550 mm.
CHASSIS
The heavy-duty trailer has a heavy-duty chassis with longitudinal flanges welded in I-profile.
AXLES
3 x 9 tonne BPW axles with original BPW air suspension and drum brakes.
BRAKES
Mandatory EBS system with roll stability programme 2S2M. Asbestos-free brake pads.
ELECTRICAL SYSTEM
The electrical system is manufactured in accordance with ISO 3731.
LOAD SECURITY
The heavy-duty trailer has a rope hook under the edge rail on every 2nd crossbeam.
OTHER

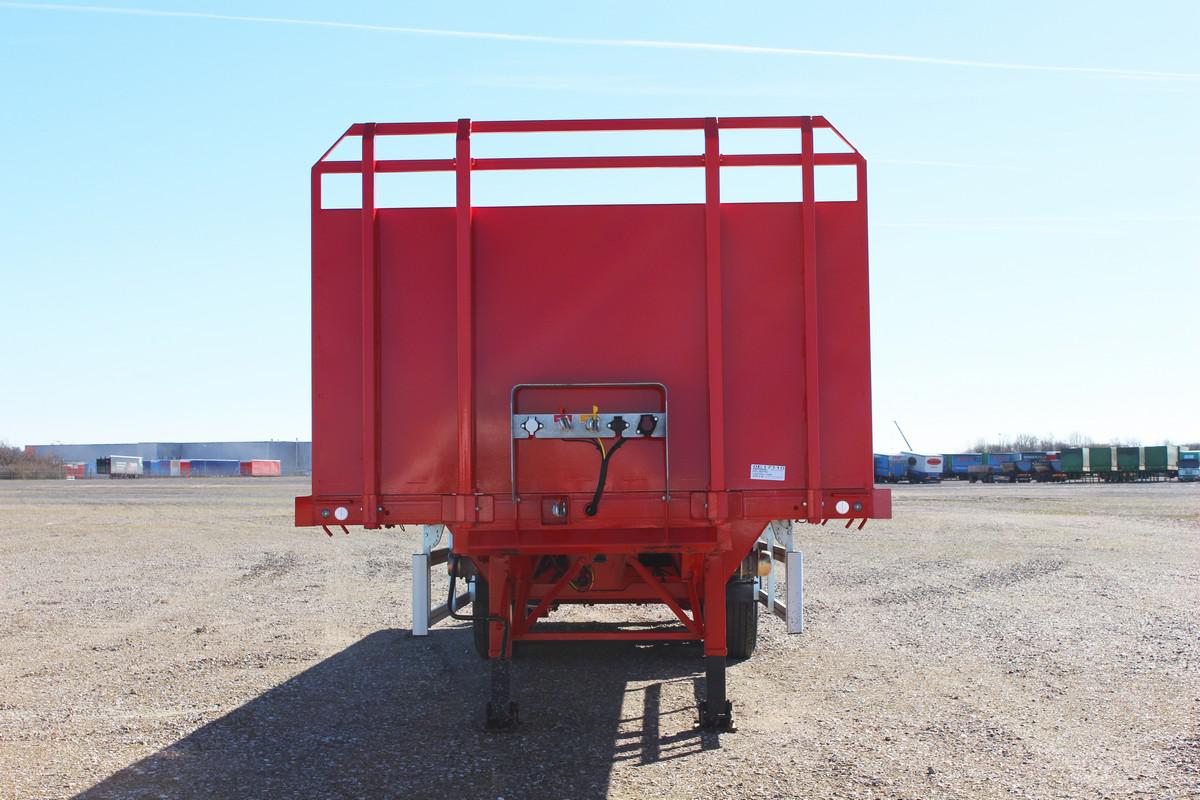

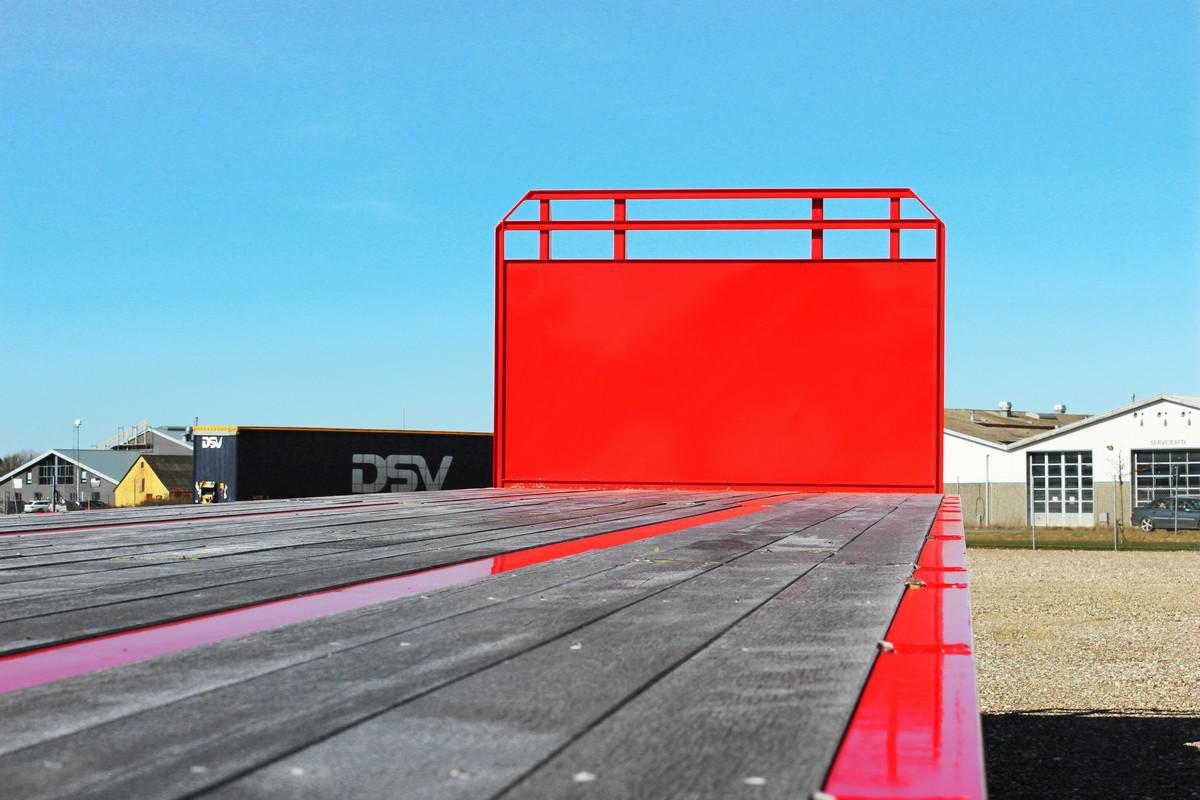

1 250 mm removable steel front on heavy-duty tubular profile frame.
