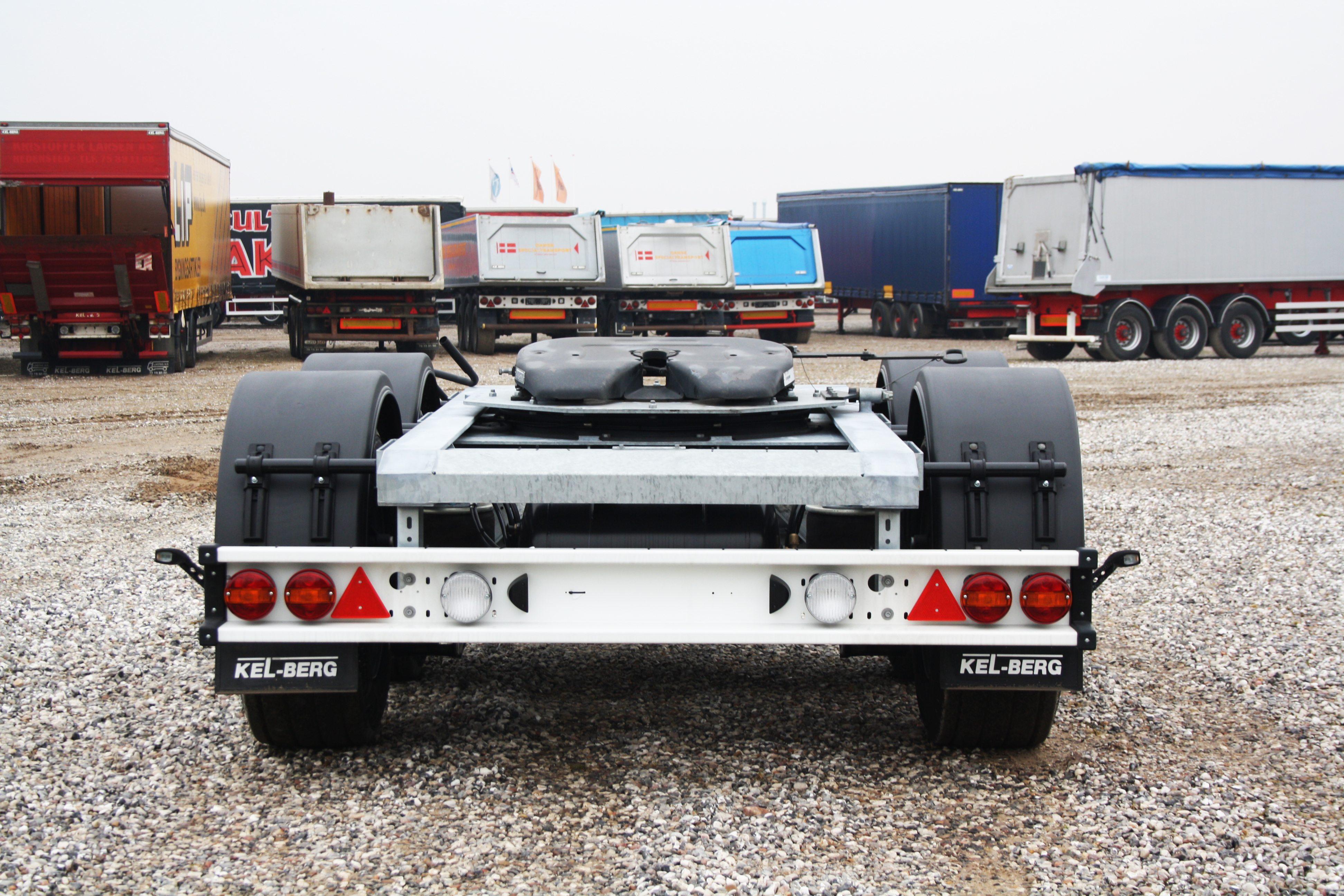

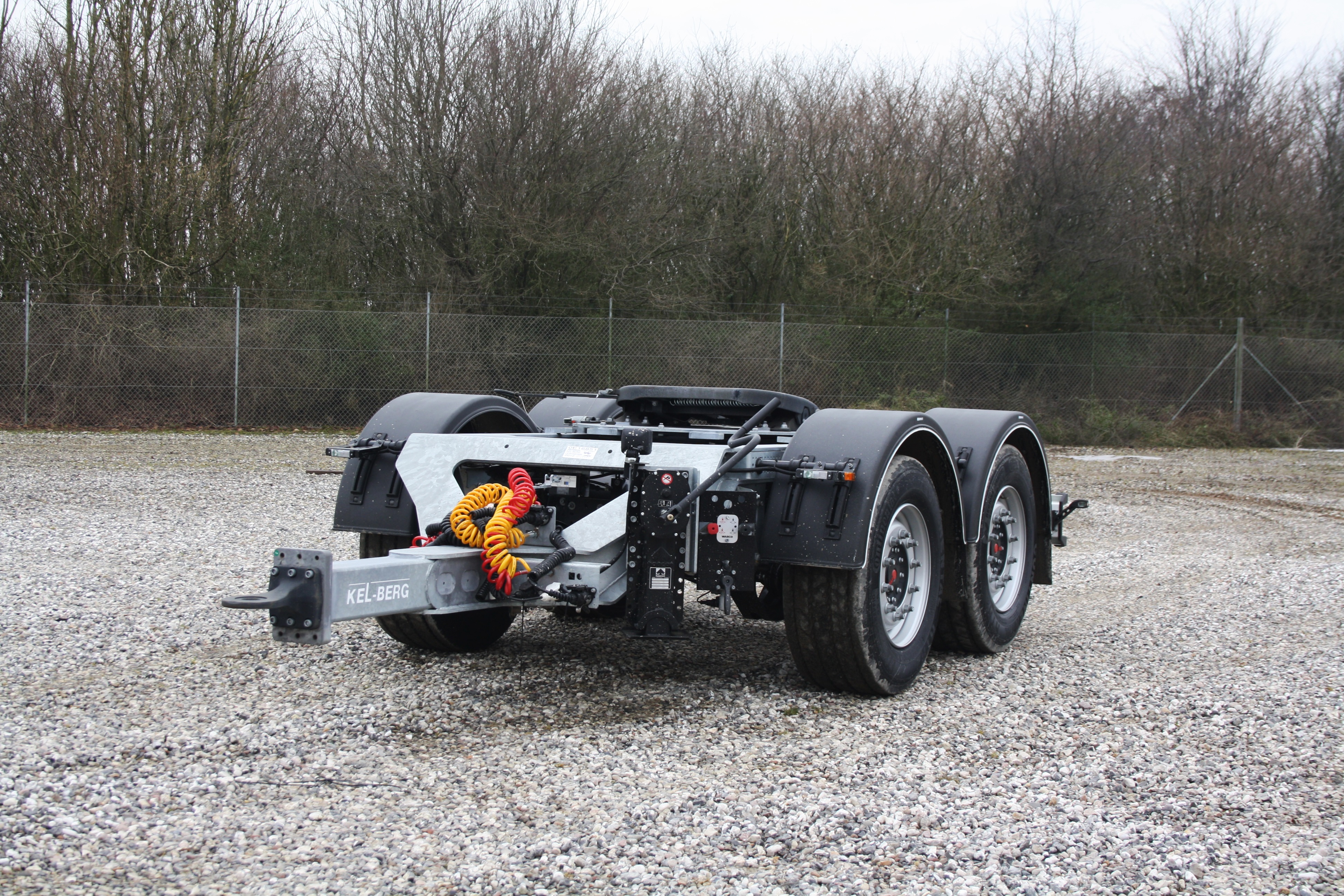

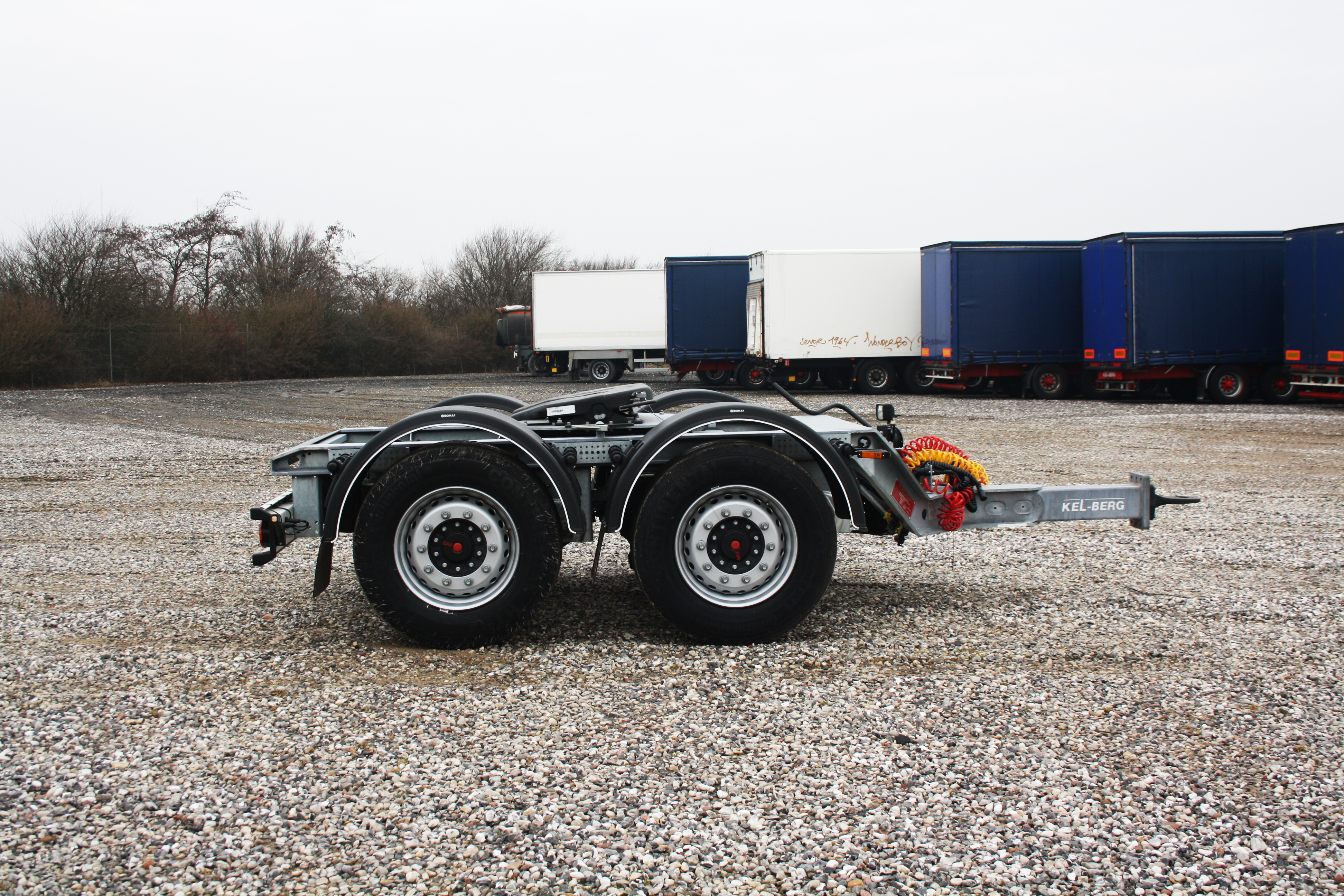

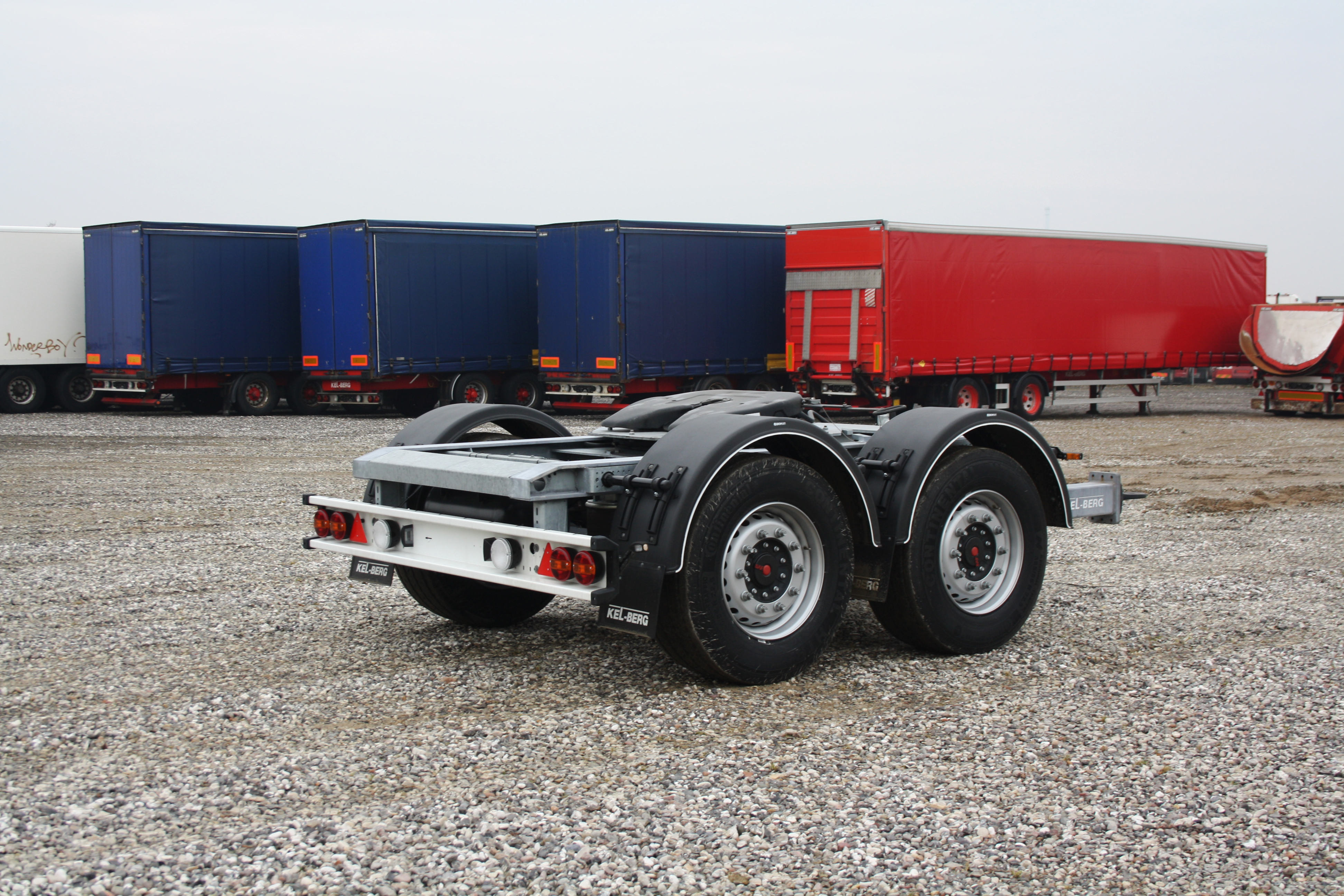

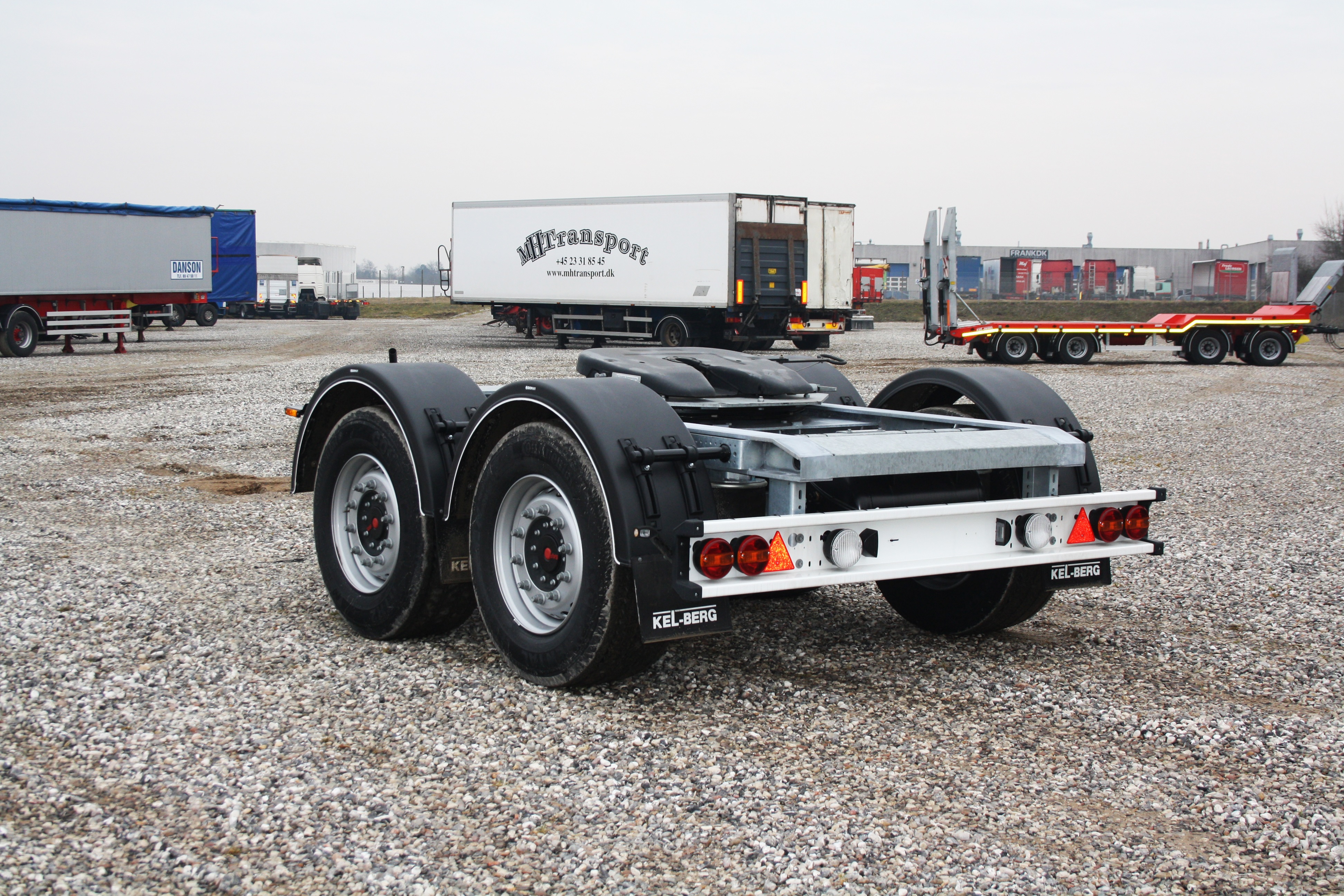

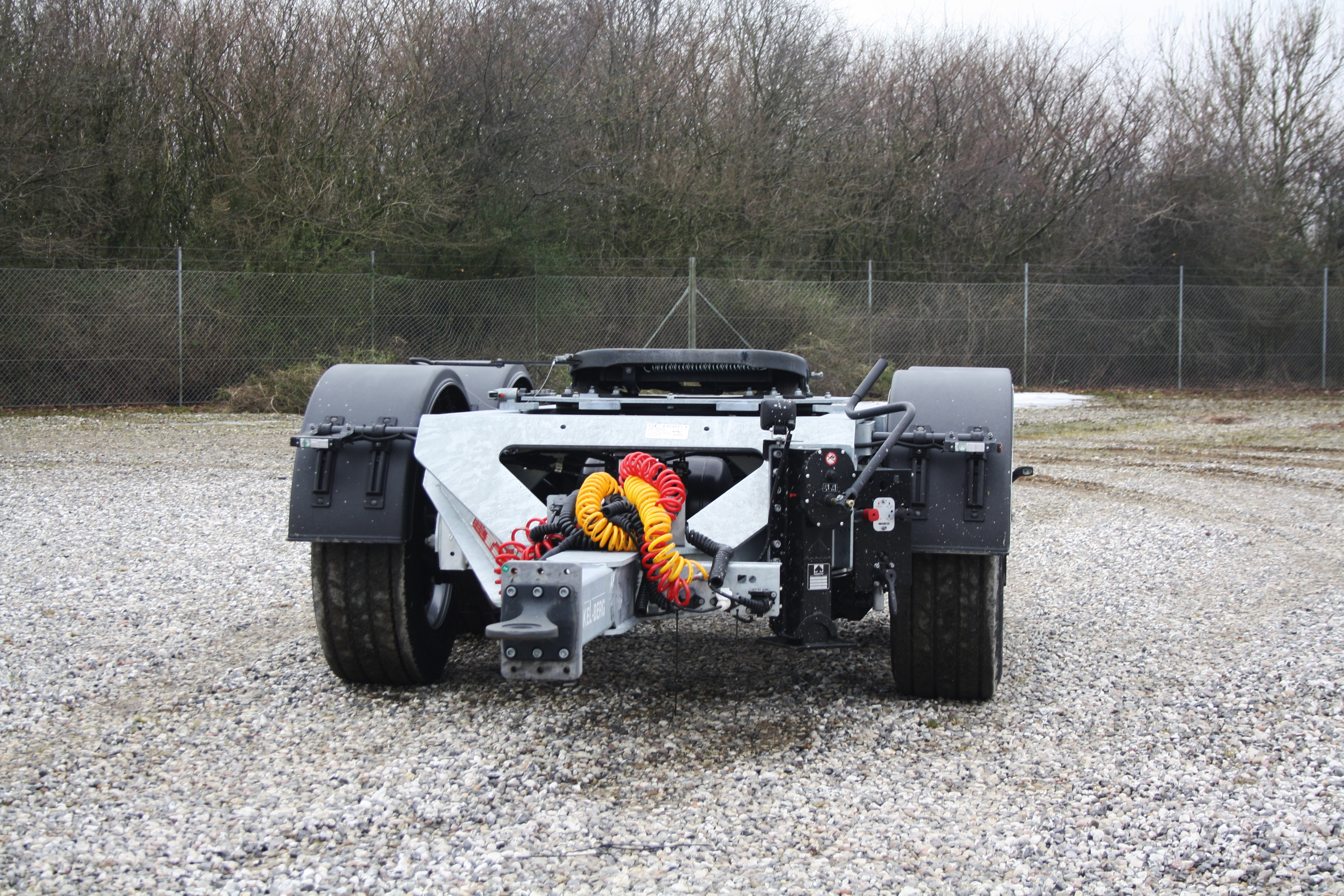

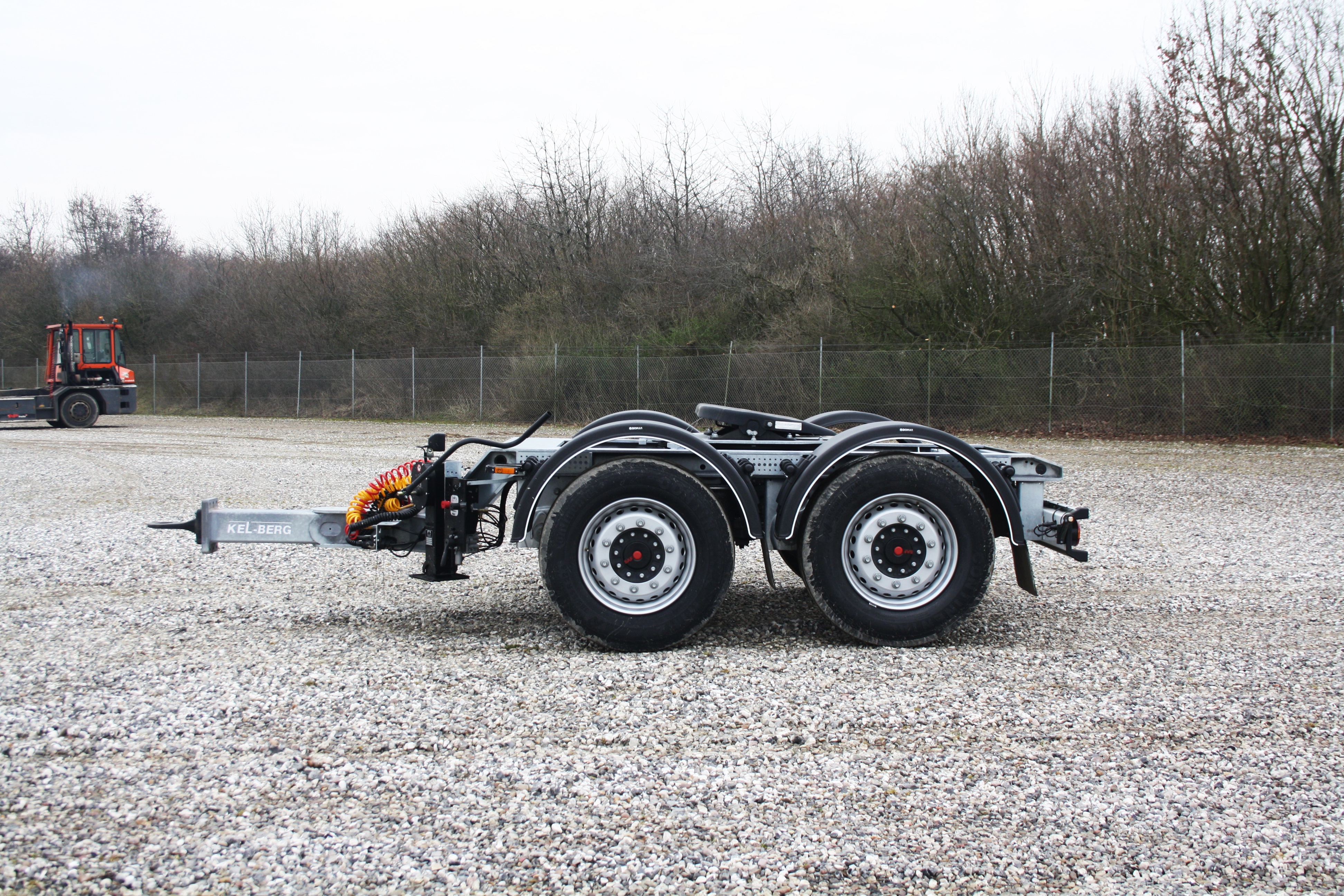

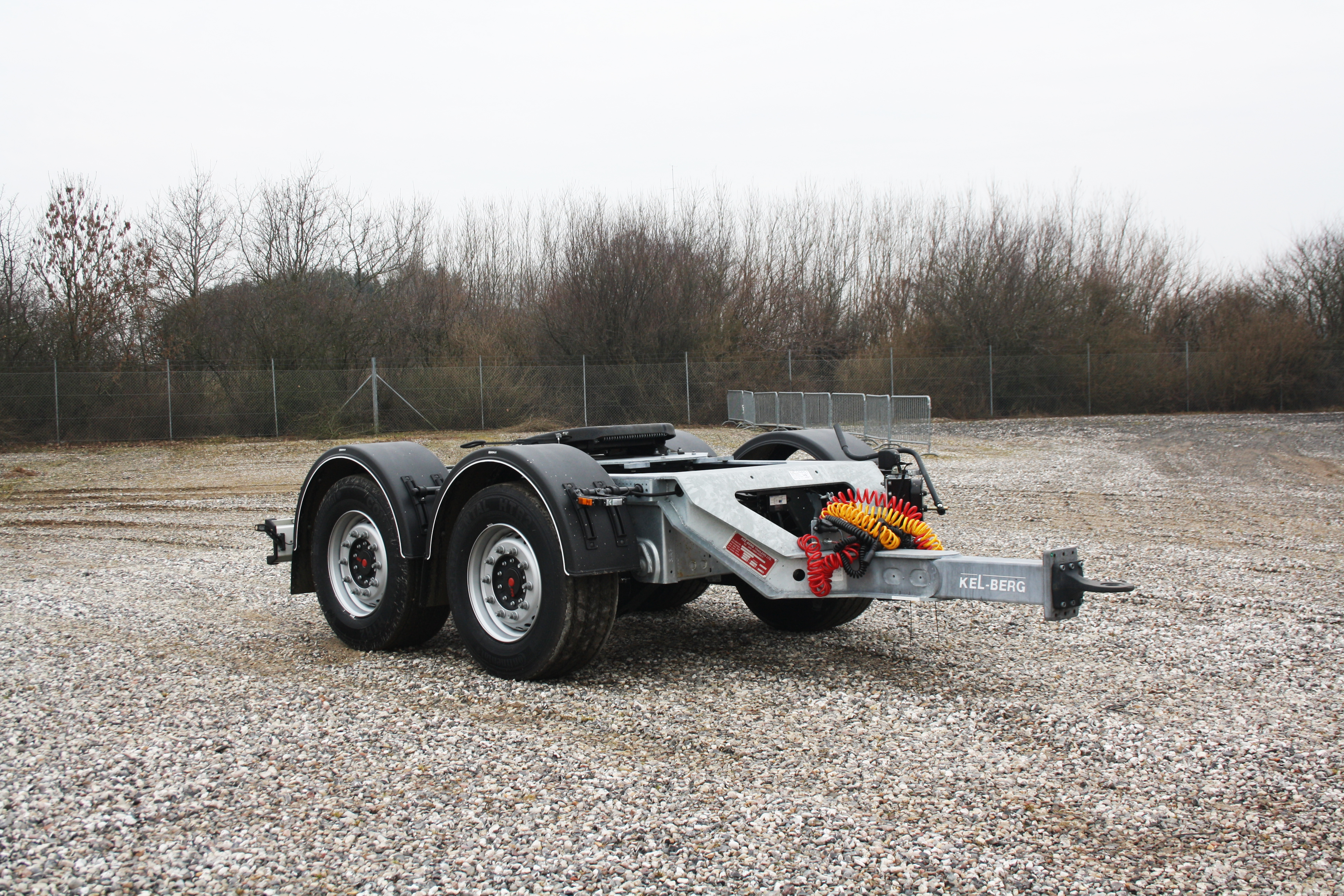

D18 KEL-BERG 2-AXLE DOLLY
DIMENSIONS & WEIGHT
This dolly has a gross vehicle weight rating of 18,000 kg and an unladen weight of 2,880 kg.
CHASSIS
Longitudinal members welded to high-strength steel I-section.
AXLES
Equipped with 2 x 9 tonne BPW or SAF axles with drum brakes.
BRAKES
Equipped with 2-line compressed air system, parking brakes and shunting valve.
PAINTING
All components are steel blasted and primed with anti-corrosion primer.
COUPLING
Equipped with 57.5 mm VBG coupling.
COUPLING & ROTARY RING
Swivelling ring with double ball and lock fitted with swivelling coupling.
ELECTRICAL SYSTEM
24-volt system ISO st VZO. standard.
