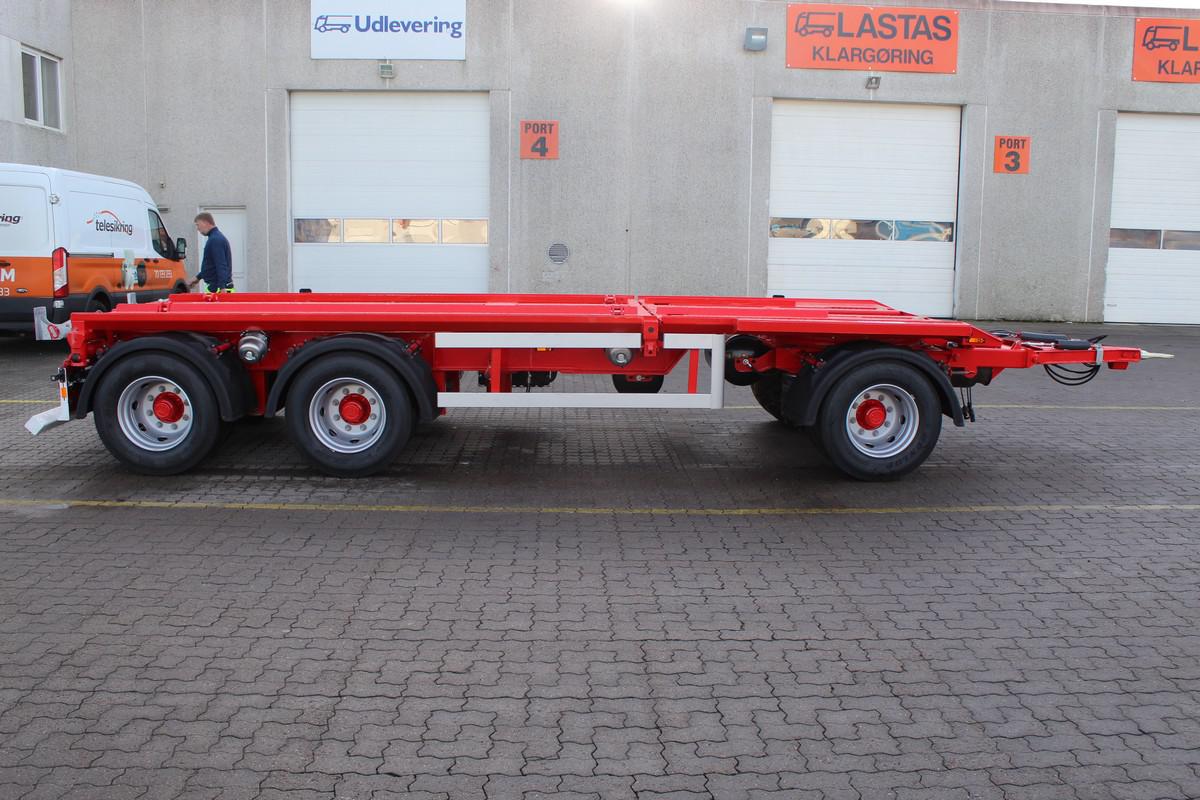

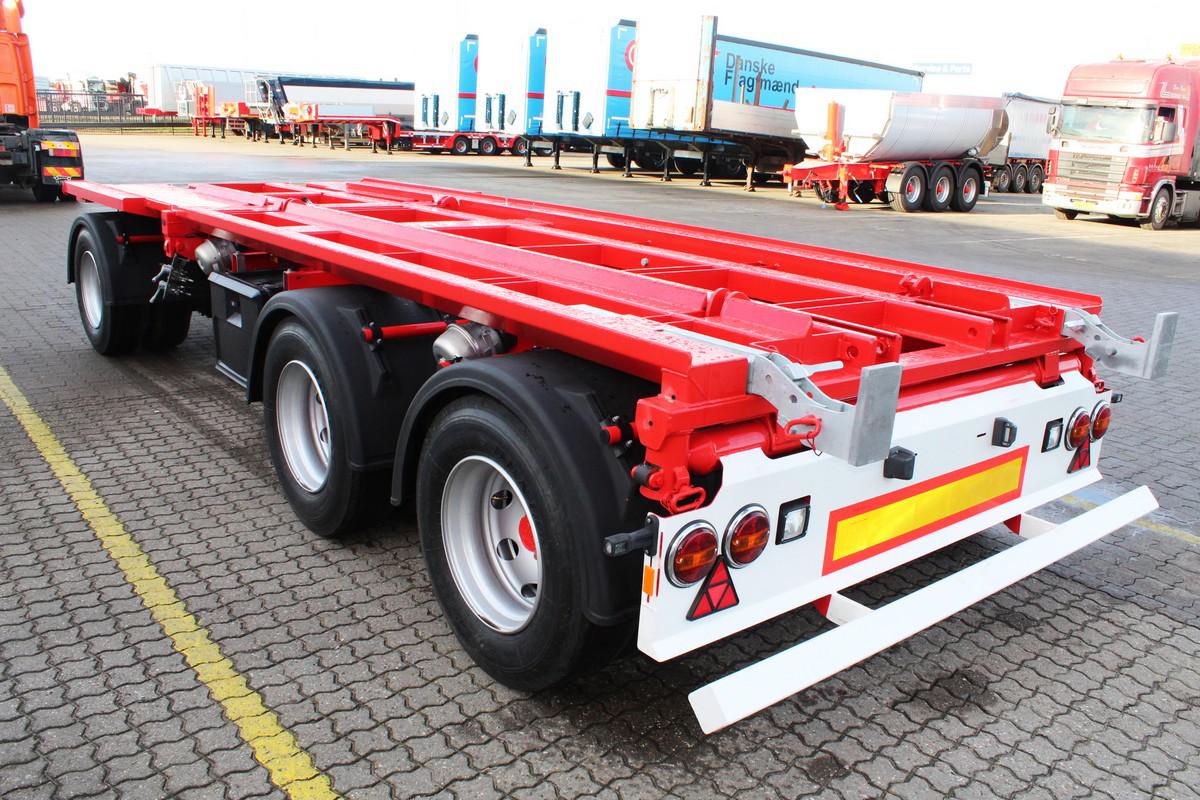

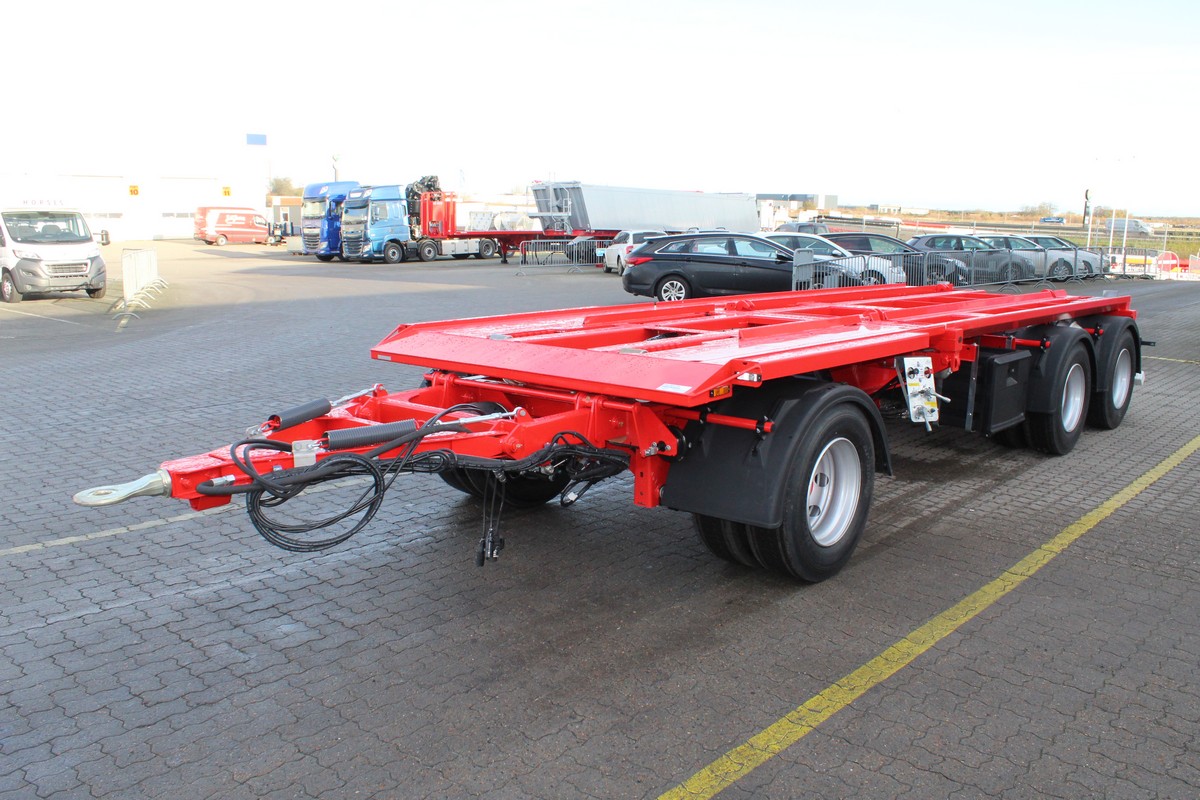

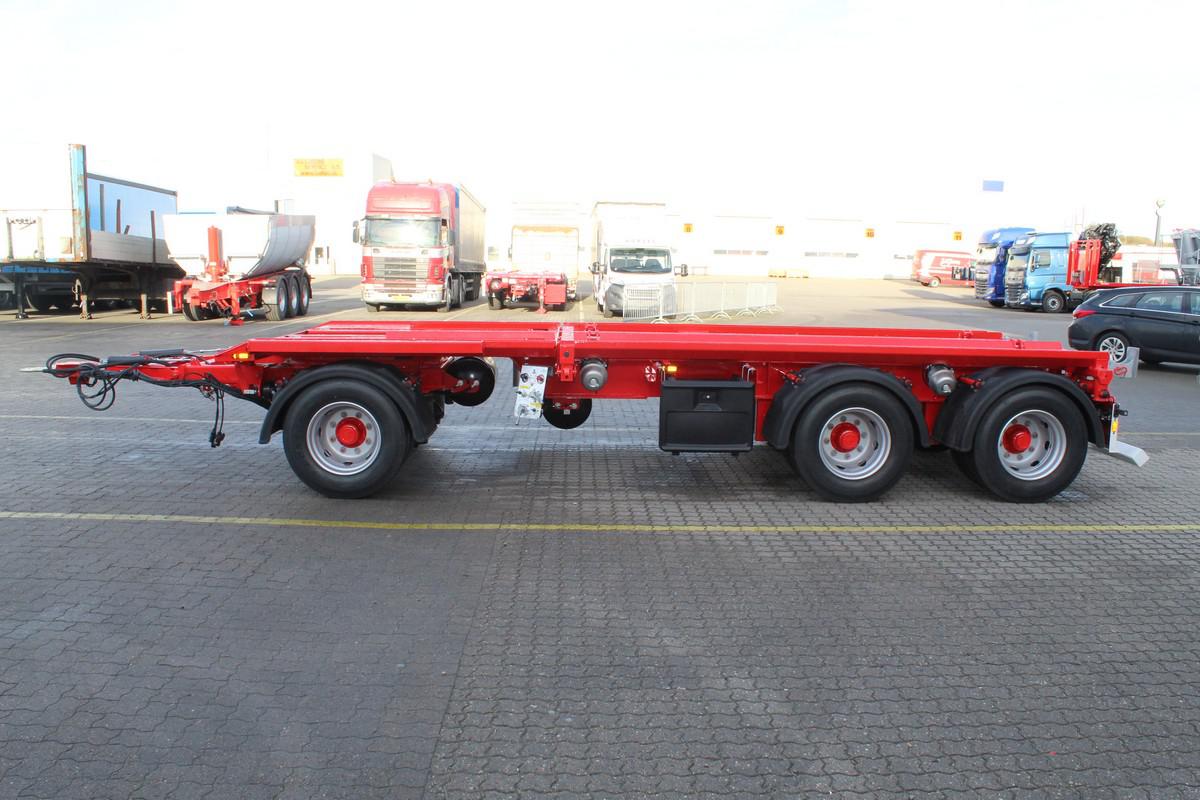

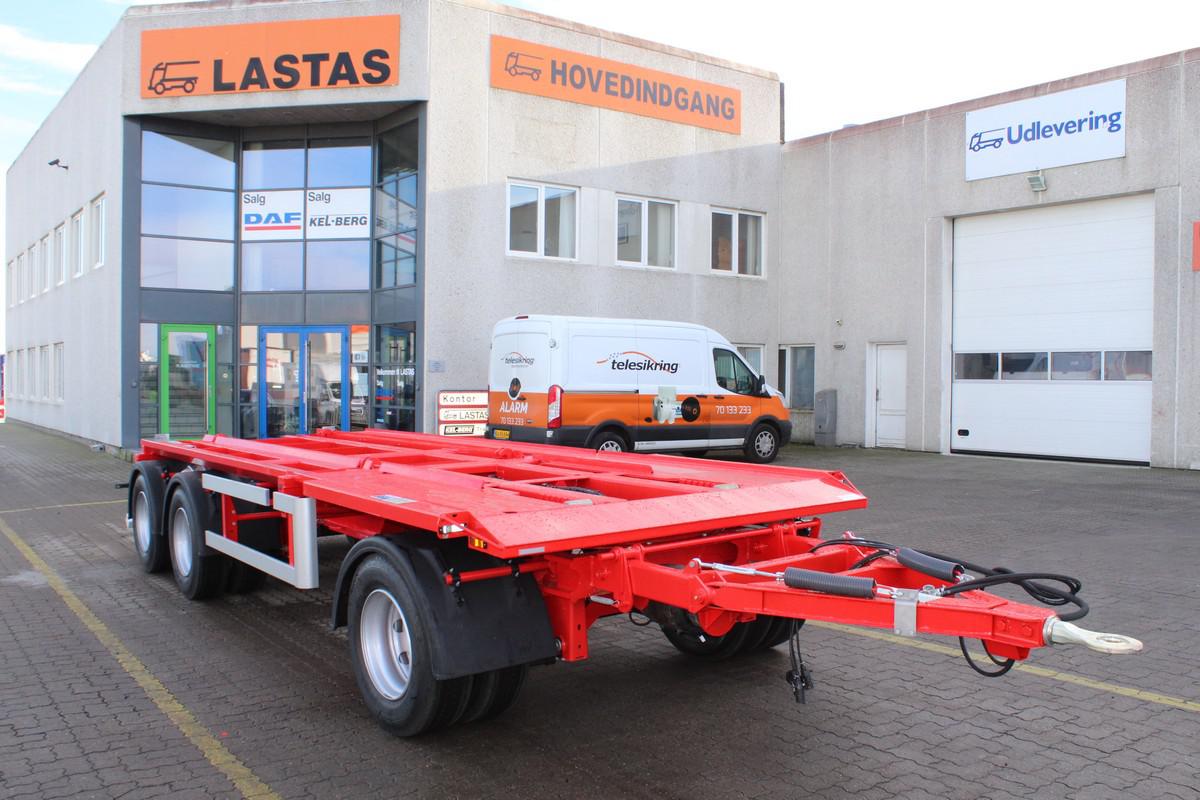

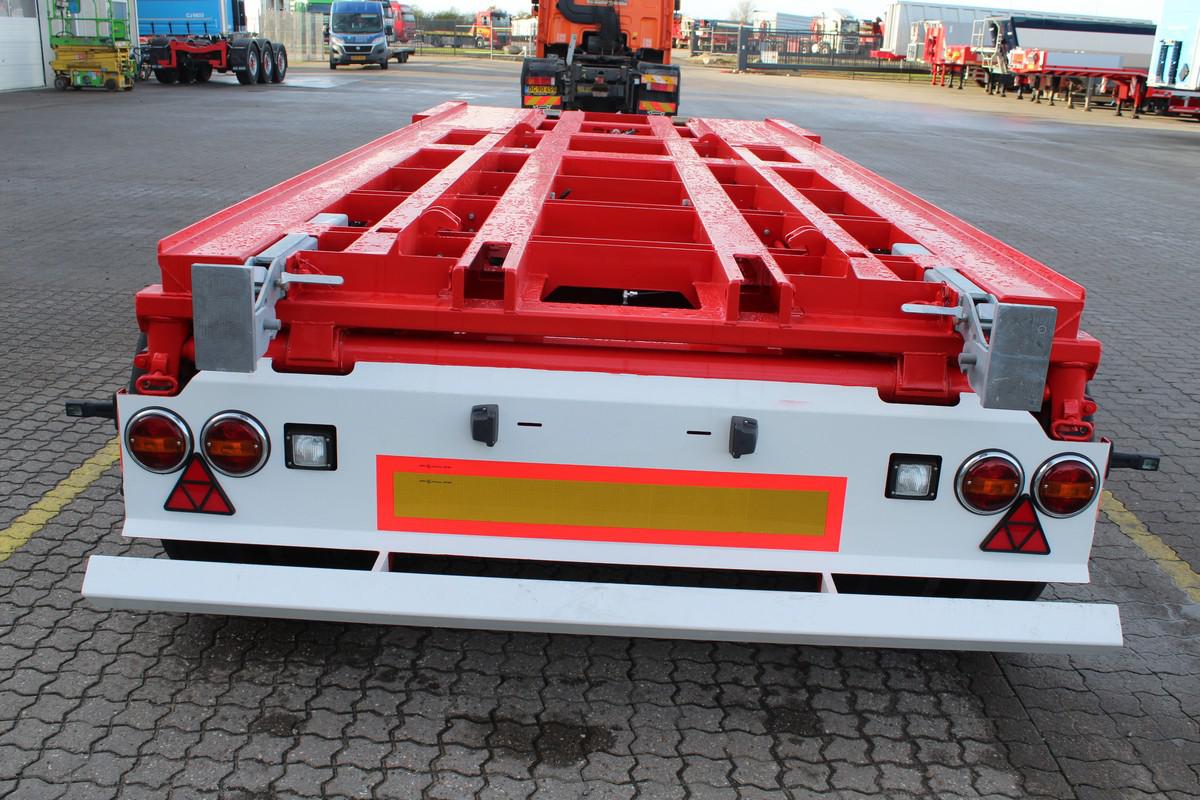

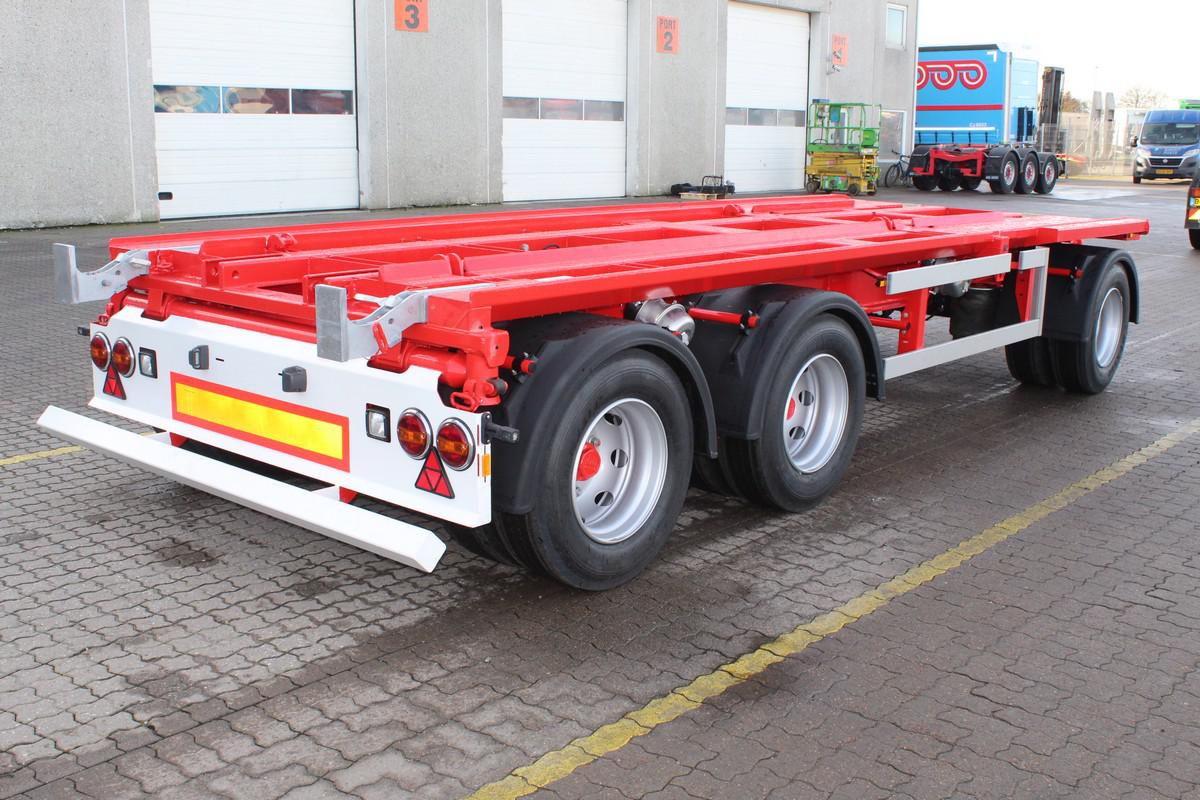

T420K KEL-BERG 3 AXLE TRANSFER TRAILER 3 WAY TIP (6.5 - 7 M CONTAINER)

DIMENSIONS & WEIGHT

The hooklift has a permitted total vehicle weight of 24,000 kg and a total axle load of 8,000 kg.

CHASSIS

The hooklift is designed for containers with inner and outer rolls of 160 mm and 220 mm.

AXLES

The hooklift is equipped with 3 x 9 tonne SAF or BPW axles with disc or drum brakes.

BRAKES

Equipped with 2-line compressed air system.

ELECTRICAL SYSTEM

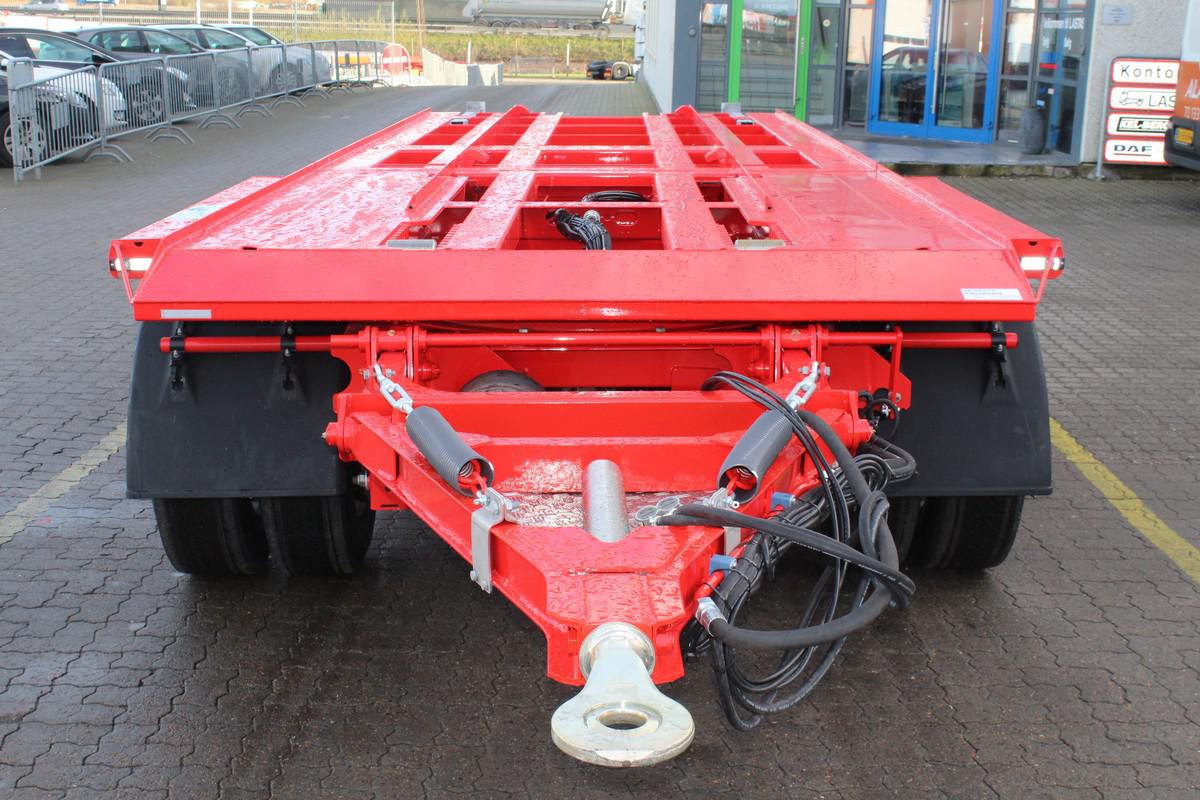

Electrical system in accordance with ISO 3731. The hook lift is fitted with a pneumatic folding drawbar triangle. It has a ball bearing of a recognised brand. The towing eye is of the 57.5 mm type.

HYDRAULICS

Stop valve mounted on the tipping frame.
